CLIP Code Guide: Complete Implementation and Usage

code
tutorial
beginner
Author

Krishnatheja Vanka

Published

May 29, 2025

CLIP Code Guide: Complete Implementation and Usage

Table of Contents

  1. Introduction to CLIP
  2. Architecture Overview
  3. Setting Up the Environment
  4. Basic CLIP Usage
  5. Custom CLIP Implementation
  6. Training CLIP from Scratch
  7. Fine-tuning CLIP
  8. Advanced Applications
  9. Performance Optimization
  10. Common Issues and Solutions

Introduction to CLIP

CLIP (Contrastive Language-Image Pre-training) is a neural network architecture developed by OpenAI that learns visual concepts from natural language supervision. It can understand images in the context of natural language descriptions, enabling zero-shot classification and multimodal understanding.

Key Features:

  • Zero-shot image classification
  • Text-image similarity computation
  • Multimodal embeddings
  • Transfer learning capabilities

Architecture Overview

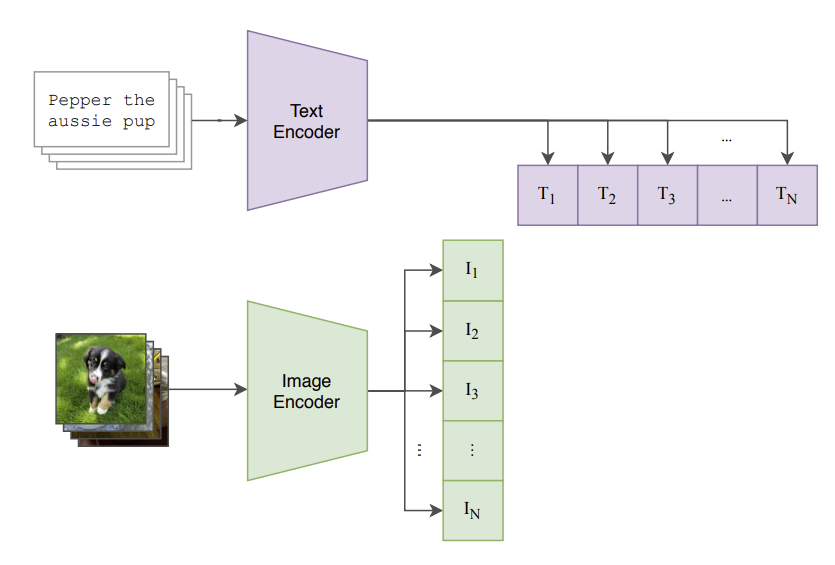

CLIP consists of two main components: 1. Text Encoder: Processes text descriptions (typically a Transformer) 2. Image Encoder: Processes images (typically a Vision Transformer or ResNet)

The model learns to maximize the cosine similarity between corresponding text-image pairs while minimizing it for non-corresponding pairs.

Setting Up the Environment

Installing Dependencies

# Basic installation
pip install torch torchvision transformers
pip install clip-by-openai  # Official OpenAI CLIP
pip install open-clip-torch  # OpenCLIP (more models)

# For development and training
pip install wandb datasets accelerate
pip install matplotlib pillow requests

Alternative Installation

# Install from source
git clone https://github.com/openai/CLIP.git
cd CLIP
pip install -e .

Basic CLIP Usage

1. Loading Pre-trained CLIP Model

import clip
import torch
from PIL import Image
import requests
from io import BytesIO

# Load model and preprocessing
device = "cuda" if torch.cuda.is_available() else "cpu"
model, preprocess = clip.load("ViT-B/32", device=device)

# Available models: ViT-B/32, ViT-B/16, ViT-L/14, RN50, RN101, RN50x4, etc.
print(f"Available models: {clip.available_models()}")

2. Image Classification (Zero-shot)

def zero_shot_classification(image_path, text_options):
    # Load and preprocess image
    image = Image.open(image_path)
    image_input = preprocess(image).unsqueeze(0).to(device)

    # Tokenize text options
    text_inputs = clip.tokenize(text_options).to(device)

    # Get predictions
    with torch.no_grad():
        image_features = model.encode_image(image_input)
        text_features = model.encode_text(text_inputs)

        # Calculate similarities
        similarities = (100.0 * image_features @ text_features.T).softmax(dim=-1)

    # Get results
    values, indices = similarities[0].topk(len(text_options))

    results = []
    for value, index in zip(values, indices):
        results.append({
            'label': text_options[index],
            'confidence': value.item()
        })

    return results

# Example usage
text_options = ["a dog", "a cat", "a car", "a bird", "a house"]
results = zero_shot_classification("path/to/image.jpg", text_options)

for result in results:
    print(f"{result['label']}: {result['confidence']:.2%}")

3. Text-Image Similarity

def compute_similarity(image_path, text_description):
    # Load image
    image = Image.open(image_path)
    image_input = preprocess(image).unsqueeze(0).to(device)

    # Tokenize text
    text_input = clip.tokenize([text_description]).to(device)

    # Get features
    with torch.no_grad():
        image_features = model.encode_image(image_input)
        text_features = model.encode_text(text_input)

        # Normalize features
        image_features = image_features / image_features.norm(dim=-1, keepdim=True)
        text_features = text_features / text_features.norm(dim=-1, keepdim=True)

        # Compute similarity
        similarity = (image_features @ text_features.T).item()

    return similarity

# Example usage
similarity = compute_similarity("dog.jpg", "a golden retriever sitting in grass")
print(f"Similarity: {similarity:.4f}")

Custom CLIP Implementation

Basic CLIP Architecture

import torch
import torch.nn as nn
import torch.nn.functional as F
from transformers import GPT2Model, GPT2Tokenizer
import timm

class CLIPModel(nn.Module):
    def __init__(self,
                 image_encoder_name='resnet50',
                 text_encoder_name='gpt2',
                 embed_dim=512,
                 image_resolution=224,
                 vocab_size=49408):
        super().__init__()

        self.embed_dim = embed_dim
        self.image_resolution = image_resolution

        # Image encoder
        self.visual = timm.create_model(image_encoder_name, pretrained=True, num_classes=0)
        visual_dim = self.visual.num_features

        # Text encoder
        self.text_encoder = GPT2Model.from_pretrained(text_encoder_name)
        text_dim = self.text_encoder.config.n_embd

        # Projection layers
        self.visual_projection = nn.Linear(visual_dim, embed_dim, bias=False)
        self.text_projection = nn.Linear(text_dim, embed_dim, bias=False)

        # Learnable temperature parameter
        self.logit_scale = nn.Parameter(torch.ones([]) * np.log(1 / 0.07))

        self.initialize_parameters()

    def initialize_parameters(self):
        # Initialize projection layers
        nn.init.normal_(self.visual_projection.weight, std=0.02)
        nn.init.normal_(self.text_projection.weight, std=0.02)

    def encode_image(self, image):
        # Extract visual features
        visual_features = self.visual(image)
        # Project to common embedding space
        image_features = self.visual_projection(visual_features)
        # Normalize
        image_features = F.normalize(image_features, dim=-1)
        return image_features

    def encode_text(self, text):
        # Get text features from last token
        text_outputs = self.text_encoder(text)
        # Use last token's representation
        text_features = text_outputs.last_hidden_state[:, -1, :]
        # Project to common embedding space
        text_features = self.text_projection(text_features)
        # Normalize
        text_features = F.normalize(text_features, dim=-1)
        return text_features

    def forward(self, image, text):
        image_features = self.encode_image(image)
        text_features = self.encode_text(text)

        # Compute logits
        logit_scale = self.logit_scale.exp()
        logits_per_image = logit_scale * image_features @ text_features.t()
        logits_per_text = logits_per_image.t()

        return logits_per_image, logits_per_text

CLIP Loss Function

def clip_loss(logits_per_image, logits_per_text):
    """
    Contrastive loss for CLIP training
    """
    batch_size = logits_per_image.shape[0]
    labels = torch.arange(batch_size, device=logits_per_image.device)

    # Cross-entropy loss for both directions
    loss_i = F.cross_entropy(logits_per_image, labels)
    loss_t = F.cross_entropy(logits_per_text, labels)

    # Average the losses
    loss = (loss_i + loss_t) / 2
    return loss

Training CLIP from Scratch

Dataset Preparation

import torch
from torch.utils.data import Dataset, DataLoader
from PIL import Image
import json

class ImageTextDataset(Dataset):
    def __init__(self, data_path, image_dir, transform=None, tokenizer=None, max_length=77):
        with open(data_path, 'r') as f:
            self.data = json.load(f)

        self.image_dir = image_dir
        self.transform = transform
        self.tokenizer = tokenizer
        self.max_length = max_length

    def __len__(self):
        return len(self.data)

    def __getitem__(self, idx):
        item = self.data[idx]

        # Load image
        image_path = os.path.join(self.image_dir, item['image'])
        image = Image.open(image_path).convert('RGB')

        if self.transform:
            image = self.transform(image)

        # Tokenize text
        text = item['caption']
        if self.tokenizer:
            text_tokens = self.tokenizer(
                text,
                max_length=self.max_length,
                padding='max_length',
                truncation=True,
                return_tensors='pt'
            )['input_ids'].squeeze(0)
        else:
            # Simple tokenization for demonstration
            text_tokens = torch.zeros(self.max_length, dtype=torch.long)

        return image, text_tokens, text

Training Loop

def train_clip(model, dataloader, optimizer, scheduler, device, num_epochs):
    model.train()

    for epoch in range(num_epochs):
        total_loss = 0
        num_batches = 0

        for batch_idx, (images, text_tokens, _) in enumerate(dataloader):
            images = images.to(device)
            text_tokens = text_tokens.to(device)

            # Forward pass
            logits_per_image, logits_per_text = model(images, text_tokens)

            # Compute loss
            loss = clip_loss(logits_per_image, logits_per_text)

            # Backward pass
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

            total_loss += loss.item()
            num_batches += 1

            # Logging
            if batch_idx % 100 == 0:
                print(f'Epoch {epoch}, Batch {batch_idx}, Loss: {loss.item():.4f}')

        # Update learning rate
        scheduler.step()

        avg_loss = total_loss / num_batches
        print(f'Epoch {epoch} completed. Average Loss: {avg_loss:.4f}')

# Training setup
model = CLIPModel().to(device)
optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4, weight_decay=0.01)
scheduler = torch.optim.lr_scheduler.CosineAnnealingLR(optimizer, T_max=num_epochs)

# Start training
train_clip(model, dataloader, optimizer, scheduler, device, num_epochs=100)

Fine-tuning CLIP

Domain-Specific Fine-tuning

def fine_tune_clip(pretrained_model, dataloader, num_epochs=10, lr=1e-5):
    # Freeze most layers, only fine-tune projection layers
    for param in pretrained_model.visual.parameters():
        param.requires_grad = False

    for param in pretrained_model.text_encoder.parameters():
        param.requires_grad = False

    # Only train projection layers
    optimizer = torch.optim.Adam([
        {'params': pretrained_model.visual_projection.parameters()},
        {'params': pretrained_model.text_projection.parameters()},
        {'params': [pretrained_model.logit_scale]}
    ], lr=lr)

    pretrained_model.train()

    for epoch in range(num_epochs):
        for batch_idx, (images, text_tokens, _) in enumerate(dataloader):
            images = images.to(device)
            text_tokens = text_tokens.to(device)

            logits_per_image, logits_per_text = pretrained_model(images, text_tokens)
            loss = clip_loss(logits_per_image, logits_per_text)

            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

            if batch_idx % 50 == 0:
                print(f'Fine-tune Epoch {epoch}, Batch {batch_idx}, Loss: {loss.item():.4f}')

Advanced Applications

1. Image Search with CLIP

class CLIPImageSearch:
    def __init__(self, model, preprocess):
        self.model = model
        self.preprocess = preprocess
        self.image_features = None
        self.image_paths = None

    def index_images(self, image_paths):
        """Pre-compute features for all images"""
        self.image_paths = image_paths
        features = []

        for img_path in image_paths:
            image = Image.open(img_path)
            image_input = self.preprocess(image).unsqueeze(0).to(device)

            with torch.no_grad():
                image_feature = self.model.encode_image(image_input)
                features.append(image_feature)

        self.image_features = torch.cat(features, dim=0)
        self.image_features = self.image_features / self.image_features.norm(dim=-1, keepdim=True)

    def search(self, query_text, top_k=5):
        """Search for images matching the text query"""
        text_input = clip.tokenize([query_text]).to(device)

        with torch.no_grad():
            text_features = self.model.encode_text(text_input)
            text_features = text_features / text_features.norm(dim=-1, keepdim=True)

            # Compute similarities
            similarities = (text_features @ self.image_features.T).squeeze(0)

            # Get top-k results
            top_similarities, top_indices = similarities.topk(top_k)

        results = []
        for sim, idx in zip(top_similarities, top_indices):
            results.append({
                'path': self.image_paths[idx],
                'similarity': sim.item()
            })

        return results

# Usage example
search_engine = CLIPImageSearch(model, preprocess)
search_engine.index_images(list_of_image_paths)
results = search_engine.search("a red sports car", top_k=10)

2. Content-Based Image Clustering

from sklearn.cluster import KMeans
import numpy as np

def cluster_images_by_content(image_paths, n_clusters=5):
    # Extract features for all images
    features = []

    for img_path in image_paths:
        image = Image.open(img_path)
        image_input = preprocess(image).unsqueeze(0).to(device)

        with torch.no_grad():
            feature = model.encode_image(image_input)
            features.append(feature.cpu().numpy())

    # Convert to numpy array
    features = np.vstack(features)

    # Perform clustering
    kmeans = KMeans(n_clusters=n_clusters, random_state=42)
    cluster_labels = kmeans.fit_predict(features)

    # Organize results
    clusters = {}
    for i, label in enumerate(cluster_labels):
        if label not in clusters:
            clusters[label] = []
        clusters[label].append(image_paths[i])

    return clusters

3. Visual Question Answering

def visual_qa(image_path, question, answer_choices):
    """Simple VQA using CLIP"""
    image = Image.open(image_path)
    image_input = preprocess(image).unsqueeze(0).to(device)

    # Create prompts combining question with each answer
    prompts = [f"Question: {question} Answer: {choice}" for choice in answer_choices]
    text_inputs = clip.tokenize(prompts).to(device)

    with torch.no_grad():
        image_features = model.encode_image(image_input)
        text_features = model.encode_text(text_inputs)

        # Compute similarities
        similarities = (100.0 * image_features @ text_features.T).softmax(dim=-1)

    # Return the most likely answer
    best_idx = similarities.argmax().item()
    return answer_choices[best_idx], similarities[0][best_idx].item()

# Example usage
answer, confidence = visual_qa(
    "image.jpg",
    "What color is the car?",
    ["red", "blue", "green", "yellow", "black"]
)
print(f"Answer: {answer}, Confidence: {confidence:.2%}")

Performance Optimization

1. Batch Processing

def batch_encode_images(image_paths, batch_size=32):
    """Process images in batches for better efficiency"""
    all_features = []

    for i in range(0, len(image_paths), batch_size):
        batch_paths = image_paths[i:i+batch_size]
        batch_images = []

        for path in batch_paths:
            image = Image.open(path)
            image_input = preprocess(image)
            batch_images.append(image_input)

        batch_tensor = torch.stack(batch_images).to(device)

        with torch.no_grad():
            batch_features = model.encode_image(batch_tensor)
            all_features.append(batch_features.cpu())

    return torch.cat(all_features, dim=0)

2. Mixed Precision Training

from torch.cuda.amp import autocast, GradScaler

def train_with_mixed_precision(model, dataloader, optimizer, num_epochs):
    scaler = GradScaler()
    model.train()

    for epoch in range(num_epochs):
        for images, text_tokens, _ in dataloader:
            images = images.to(device)
            text_tokens = text_tokens.to(device)

            optimizer.zero_grad()

            # Forward pass with autocast
            with autocast():
                logits_per_image, logits_per_text = model(images, text_tokens)
                loss = clip_loss(logits_per_image, logits_per_text)

            # Backward pass with scaling
            scaler.scale(loss).backward()
            scaler.step(optimizer)
            scaler.update()

3. Model Quantization

import torch.quantization as quantization

def quantize_clip_model(model):
    """Quantize CLIP model for inference"""
    model.eval()

    # Specify quantization configuration
    model.qconfig = quantization.get_default_qconfig('fbgemm')

    # Prepare model for quantization
    model_prepared = quantization.prepare(model, inplace=False)

    # Calibrate with sample data (you need to provide calibration data)
    # ... calibration code here ...

    # Convert to quantized model
    model_quantized = quantization.convert(model_prepared, inplace=False)

    return model_quantized

Common Issues and Solutions

1. Memory Management

# Clear GPU cache
torch.cuda.empty_cache()

# Use gradient checkpointing for large models
def enable_gradient_checkpointing(model):
    if hasattr(model.visual, 'set_grad_checkpointing'):
        model.visual.set_grad_checkpointing(True)
    if hasattr(model.text_encoder, 'gradient_checkpointing_enable'):
        model.text_encoder.gradient_checkpointing_enable()

2. Handling Different Image Sizes

from torchvision import transforms

def create_adaptive_transform(target_size=224):
    return transforms.Compose([
        transforms.Resize(target_size, interpolation=transforms.InterpolationMode.BICUBIC),
        transforms.CenterCrop(target_size),
        transforms.ToTensor(),
        transforms.Normalize(
            mean=[0.485, 0.456, 0.406],
            std=[0.229, 0.224, 0.225]
        )
    ])

3. Text Preprocessing

import re

def preprocess_text(text, max_length=77):
    """Clean and preprocess text for CLIP"""
    # Remove special characters and extra whitespace
    text = re.sub(r'[^\w\s]', '', text)
    text = ' '.join(text.split())

    # Truncate if too long
    words = text.split()
    if len(words) > max_length - 2:  # Account for special tokens
        text = ' '.join(words[:max_length-2])

    return text

4. Model Evaluation Utilities

def evaluate_zero_shot_accuracy(model, preprocess, test_loader, class_names):
    """Evaluate zero-shot classification accuracy"""
    model.eval()
    correct = 0
    total = 0

    # Encode class names
    text_inputs = clip.tokenize([f"a photo of a {name}" for name in class_names]).to(device)

    with torch.no_grad():
        text_features = model.encode_text(text_inputs)
        text_features = text_features / text_features.norm(dim=-1, keepdim=True)

        for images, labels in test_loader:
            images = images.to(device)

            # Encode images
            image_features = model.encode_image(images)
            image_features = image_features / image_features.norm(dim=-1, keepdim=True)

            # Compute similarities
            similarities = (100.0 * image_features @ text_features.T).softmax(dim=-1)
            predictions = similarities.argmax(dim=-1)

            correct += (predictions == labels.to(device)).sum().item()
            total += labels.size(0)

    accuracy = correct / total
    return accuracy

# Usage
accuracy = evaluate_zero_shot_accuracy(model, preprocess, test_loader, class_names)
print(f"Zero-shot accuracy: {accuracy:.2%}")

Conclusion

This guide covers the essential aspects of working with CLIP, from basic usage to advanced implementations. Key takeaways:

  1. Start Simple: Use pre-trained models for most applications
  2. Understand the Architecture: CLIP’s power comes from joint text-image training
  3. Optimize for Your Use Case: Fine-tune or customize based on your specific needs
  4. Monitor Performance: Use proper evaluation metrics and optimization techniques
  5. Handle Edge Cases: Implement robust preprocessing and error handling

For production deployments, consider:

  • Model quantization for faster inference
  • Batch processing for efficiency
  • Proper error handling and fallbacks
  • Monitoring and logging for performance tracking

The field of multimodal AI is rapidly evolving, so stay updated with the latest research and implementations to leverage CLIP’s full potential in your applications.
