DenseNet: Densely Connected Convolutional Networks

research
intermediate
Author

Krishnatheja Vanka

Published

July 19, 2025

DenseNet: Densely Connected Convolutional Networks

Introduction

DenseNet (Densely Connected Convolutional Networks) represents a significant advancement in deep learning architecture design, introduced by Gao Huang, Zhuang Liu, Laurens van der Maaten, and Kilian Q. Weinberger in their 2017 paper “Densely Connected Convolutional Networks.” This architecture addresses fundamental challenges in training very deep neural networks while achieving remarkable efficiency and performance across various computer vision tasks.

Key Innovation

The core innovation of DenseNet lies in its dense connectivity pattern, where each layer receives feature maps from all preceding layers and passes its own feature maps to all subsequent layers.

This seemingly simple modification to traditional convolutional architectures yields profound improvements in gradient flow, feature reuse, and parameter efficiency.

The Problem with Traditional Deep Networks

Before understanding DenseNet’s innovations, it’s crucial to recognize the challenges that deep convolutional networks face as they grow deeper. Traditional architectures like VGG and early versions of ResNet suffered from several key issues:

As networks become deeper, gradients can become exponentially smaller during backpropagation, making it difficult to train the early layers effectively. This leads to poor convergence and suboptimal performance.

In conventional feed-forward architectures, information flows linearly from input to output. As information passes through multiple layers, important details from earlier layers can be lost or diluted.

Many deep networks contain redundant parameters that don’t contribute meaningfully to the final prediction. This inefficiency leads to larger models without proportional performance gains.

Traditional architectures don’t effectively reuse features computed in earlier layers, leading to redundant computations and missed opportunities for feature combination.

DenseNet Architecture Overview

DenseNet addresses these challenges through its distinctive dense connectivity pattern. The architecture is built around dense blocks, where each layer within a block receives inputs from all preceding layers in that block.

Code
graph TD
    A[Input Image] --> B[Initial Conv Layer]
    B --> C[Dense Block 1]
    C --> D[Transition Layer 1]
    D --> E[Dense Block 2]
    E --> F[Transition Layer 2]
    F --> G[Dense Block 3]
    G --> H[Transition Layer 3]
    H --> I[Dense Block 4]
    I --> J[Global Average Pooling]
    J --> K[Classifier]
    K --> L[Output]

    style C fill:#e1f5fe
    style E fill:#e1f5fe
    style G fill:#e1f5fe
    style I fill:#e1f5fe
graph TD
    A[Input Image] --> B[Initial Conv Layer]
    B --> C[Dense Block 1]
    C --> D[Transition Layer 1]
    D --> E[Dense Block 2]
    E --> F[Transition Layer 2]
    F --> G[Dense Block 3]
    G --> H[Transition Layer 3]
    H --> I[Dense Block 4]
    I --> J[Global Average Pooling]
    J --> K[Classifier]
    K --> L[Output]

    style C fill:#e1f5fe
    style E fill:#e1f5fe
    style G fill:#e1f5fe
    style I fill:#e1f5fe
Figure 1: DenseNet Architecture Overview showing dense blocks and transition layers

Dense Blocks

The fundamental building unit of DenseNet is the dense block. Within each dense block, the \(l\)-th layer receives feature maps from all preceding layers \((x_0, x_1, ..., x_{l-1})\) and produces \(k\) feature maps as output.

Composite Function

The composite function \(H_l\) typically consists of:

  1. Batch Normalization (BN)
  2. ReLU activation
  3. 3×3 Convolution

The key equation governing dense connectivity is:

\[ x_l = H_l([x_0, x_1, ..., x_{l-1}]) \]

Where \([x_0, x_1, ..., x_{l-1}]\) represents the concatenation of feature maps from layers 0, 1, …, \(l-1\).

Growth Rate

The growth rate (\(k\)) is a hyperparameter that determines how many feature maps each layer adds to the “collective knowledge” of the network. Even with small growth rates (\(k=12\) or \(k=32\)), DenseNet achieves excellent performance because each layer has access to all preceding feature maps within the block.

Transition Layers

Between dense blocks, transition layers perform dimensionality reduction and spatial downsampling:

Transition Layer Components:

  • Batch Normalization
  • 1×1 Convolution (channel reduction)
  • 2×2 Average Pooling (spatial downsampling)

The compression factor \(\theta\) (typically 0.5) determines how much the number of channels is reduced in transition layers, helping control model complexity.

Key Innovations and Benefits

Enhanced Gradient Flow

Code
graph LR
    subgraph id2[Traditional Network]
        A1[Layer 1] --> A2[Layer 2] --> A3[Layer 3] --> A4[Layer 4]
    end

    subgraph id1[DenseNet]
        B1[Layer 1] --> B2[Layer 2]
        B1 --> B3[Layer 3]
        B1 --> B4[Layer 4]
        B2 --> B3
        B2 --> B4
        B3 --> B4
    end

    style id1 fill:#ffffff
    style id2 fill:#ffffff
    style A1 fill:#c8e6c9
    style A2 fill:#c8e6c9
    style A3 fill:#c8e6c9
    style A4 fill:#c8e6c9
    style B1 fill:#c8e6c9
    style B2 fill:#c8e6c9
    style B3 fill:#c8e6c9
    style B4 fill:#c8e6c9
graph LR
    subgraph id2[Traditional Network]
        A1[Layer 1] --> A2[Layer 2] --> A3[Layer 3] --> A4[Layer 4]
    end

    subgraph id1[DenseNet]
        B1[Layer 1] --> B2[Layer 2]
        B1 --> B3[Layer 3]
        B1 --> B4[Layer 4]
        B2 --> B3
        B2 --> B4
        B3 --> B4
    end

    style id1 fill:#ffffff
    style id2 fill:#ffffff
    style A1 fill:#c8e6c9
    style A2 fill:#c8e6c9
    style A3 fill:#c8e6c9
    style A4 fill:#c8e6c9
    style B1 fill:#c8e6c9
    style B2 fill:#c8e6c9
    style B3 fill:#c8e6c9
    style B4 fill:#c8e6c9
Figure 2: Comparison of gradient flow in traditional networks vs DenseNet

DenseNet’s dense connections create multiple short paths between any two layers, significantly improving gradient flow during backpropagation. This addresses the vanishing gradient problem that plagued earlier deep architectures.

Feature Reuse and Efficiency

The dense connectivity pattern maximizes information flow and feature reuse throughout the network. Later layers can directly access features from all earlier layers, eliminating the need to recompute similar features.

Parameter Efficiency

A DenseNet-121 with 7.0M parameters can outperform a ResNet-152 with 60.2M parameters on ImageNet.

Regularization Effect

The dense connections inherently provide a regularization effect. Since each layer contributes to multiple subsequent layers’ inputs, the network is less likely to overfit to specific pathways.

DenseNet Variants and Configurations

Standard DenseNet Architectures

Table 1: DenseNet standard configurations
Model Dense Blocks Layers per Block Growth Rate Parameters
DenseNet-121 4 [6, 12, 24, 16] k=32 7.0M
DenseNet-169 4 [6, 12, 32, 32] k=32 12.6M
DenseNet-201 4 [6, 12, 48, 32] k=32 18.3M
DenseNet-264 4 [6, 12, 64, 48] k=32 33.3M

DenseNet-BC (Bottleneck and Compression)

DenseNet-BC introduces two important modifications:

Bottleneck Layers Each 3×3 convolution is preceded by a 1×1 convolution that reduces the number of input channels to 4k, improving computational efficiency.

Compression Transition layers reduce the number of channels by a factor \(\theta < 1\), typically 0.5, which helps control model size and computational cost.

Implementation Details

Memory Optimization

# Pseudocode for memory-efficient DenseNet implementation
def efficient_densenet_forward(x, layers):
    features = [x]
    for layer in layers:
        # Use checkpointing for memory efficiency
        new_features = checkpoint(layer, torch.cat(features, 1))
        features.append(new_features)
    return torch.cat(features, 1)
Memory Considerations

One challenge with DenseNet is memory consumption due to concatenating feature maps from all previous layers. Several optimization strategies address this:

  • Memory-Efficient Implementation: Using checkpointing and careful memory management
  • Shared Memory Allocations: Reusing memory buffers for intermediate computations
  • Gradient Checkpointing: Trading computation for memory

Training Considerations

Training DenseNet effectively requires attention to several factors:

  • Learning Rate Schedule: Often benefits from more gradual decay compared to ResNet
  • Batch Size: Due to memory requirements, smaller batch sizes are often necessary
  • Data Augmentation: Standard techniques work well (random crops, horizontal flips, color jittering)

Performance and Benchmarks

ImageNet Classification

Code
import matplotlib.pyplot as plt
import numpy as np

# Data for different models
models = ['DenseNet-121', 'DenseNet-169', 'DenseNet-201', 'ResNet-50', 'ResNet-101', 'ResNet-152']
params = [7.0, 12.6, 18.3, 25.6, 44.5, 60.2]  # in millions
error_rates = [25.35, 24.00, 22.58, 23.85, 22.63, 23.00]

# Create the plot
plt.figure(figsize=(10, 6))
colors = ['#2E8B57' if 'DenseNet' in model else '#CD5C5C' for model in models]
plt.scatter(params, error_rates, c=colors, s=100, alpha=0.7)

for i, model in enumerate(models):
    plt.annotate(model, (params[i], error_rates[i]),
                xytext=(5, 5), textcoords='offset points', fontsize=9)

plt.xlabel('Parameters (millions)')
plt.ylabel('ImageNet Top-1 Error Rate (%)')
plt.title('Parameter Efficiency Comparison')
plt.grid(True, alpha=0.3)
plt.legend(['DenseNet', 'ResNet'], loc='upper right')
plt.show()

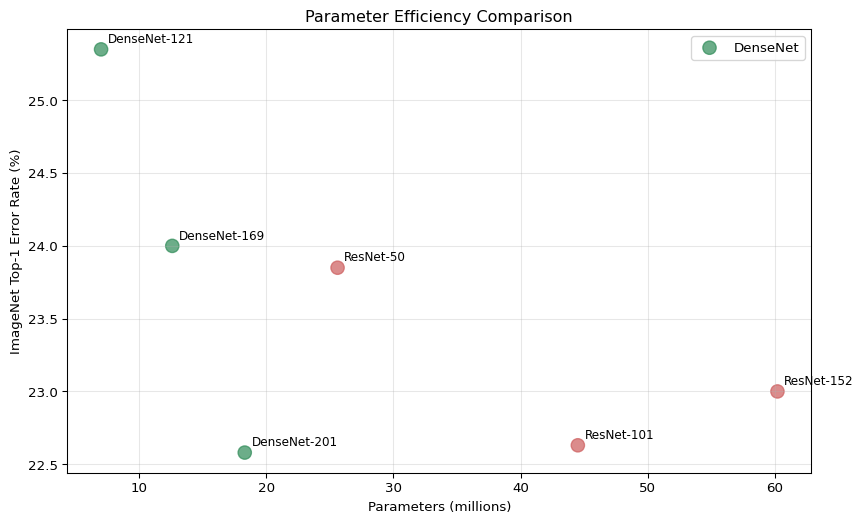

Figure 3: ImageNet top-1 error rates vs number of parameters for different architectures

CIFAR Datasets

CIFAR-10 Results

  • DenseNet (L=190, k=40): 3.46% error rate
  • Excellent performance on this benchmark dataset

CIFAR-100 Results

  • DenseNet (L=190, k=40): 17.18% error rate
  • Superior to many contemporary architectures

Applications and Use Cases

Computer Vision Tasks

Code
mindmap
  root((DenseNet Applications))
    Classification
      ImageNet
      Medical Imaging
      Remote Sensing
    Detection
      Object Detection
      Face Detection
      Autonomous Driving
    Segmentation
      Semantic Segmentation
      Medical Segmentation
      Industrial Inspection
    Transfer Learning
      Fine-grained Classification
      Domain Adaptation
      Few-shot Learning
mindmap
  root((DenseNet Applications))
    Classification
      ImageNet
      Medical Imaging
      Remote Sensing
    Detection
      Object Detection
      Face Detection
      Autonomous Driving
    Segmentation
      Semantic Segmentation
      Medical Segmentation
      Industrial Inspection
    Transfer Learning
      Fine-grained Classification
      Domain Adaptation
      Few-shot Learning
Figure 4: DenseNet applications across different computer vision tasks

Domain-Specific Adaptations

  • Medical Imaging: Parameter efficiency valuable when data is limited
  • Remote Sensing: Multi-scale feature capture for satellite imagery
  • Industrial Applications: Quality control and defect detection

Advantages and Limitations

✅ Advantages

  • Parameter Efficiency: Better performance with fewer parameters
  • Strong Gradient Flow: Robust gradient propagation
  • Feature Reuse: Maximum utilization of learned features
  • Implicit Regularization: Natural overfitting resistance
  • Transfer Learning: Features transfer well to new domains

⚠️ Limitations

  • Memory Consumption: Higher memory usage due to concatenations
  • Computational Overhead: Feature concatenation operations
  • Training Complexity: Requires careful hyperparameter tuning
  • Scalability: Memory constraints for very large inputs

Comparison with Other Architectures

DenseNet vs. ResNet

Table 2: Comparison between DenseNet and ResNet architectures
Aspect DenseNet ResNet
Connections Feature concatenation Element-wise addition
Parameters More efficient More parameters needed
Memory Higher usage Lower usage
Feature Reuse Explicit reuse Limited reuse

Recent Developments and Extensions

Modern Extensions
  • 3D DenseNet: For video analysis and 3D medical imaging
  • Attention-enhanced DenseNet: Integration with self-attention mechanisms
  • Mobile DenseNet: Lightweight variants for edge deployment
  • NAS-discovered DenseNet: Architectures found through Neural Architecture Search

Future Directions

The dense connectivity principle continues to influence modern architecture design:

  1. Adaptive Connectivity: Learning optimal connection patterns
  2. Memory-Efficient Variants: Maintaining benefits while reducing memory
  3. Multi-Modal Applications: Extending to multi-modal learning
  4. Continual Learning: Leveraging dense connectivity for lifelong learning

Conclusion

DenseNet represents a fundamental shift in how we think about information flow in deep neural networks. By connecting each layer to every other layer in a feed-forward fashion, DenseNet addresses key challenges in training very deep networks while achieving remarkable parameter efficiency.

Key Takeaways

The architecture’s success stems from its ability to:

  • Maximize information flow and feature reuse
  • Achieve stronger gradient flow and implicit regularization
  • Create compact yet powerful models
  • Provide excellent transferability across domains

For practitioners, DenseNet offers an excellent balance of performance, efficiency, and transferability, making it a valuable tool in the deep learning toolkit. Its principles continue to inspire new developments in neural architecture design.
