LoRA for Vision-Language Models: A Comprehensive Guide

Abstract

Low-Rank Adaptation (LoRA) has emerged as a revolutionary technique for efficient fine-tuning of large language models, and its application to Vision-Language Models (VLMs) represents a significant advancement in multimodal AI. This comprehensive guide provides theoretical foundations, practical implementation strategies, and production deployment techniques for LoRA in VLMs, covering everything from basic concepts to advanced optimization methods.

Introduction

Vision-Language Models like CLIP, BLIP, LLaVA, and GPT-4V contain billions of parameters, making full fine-tuning computationally expensive and memory-intensive. LoRA addresses these challenges by:

Reducing memory requirements by up to 90%
Accelerating training by 2-3x
Maintaining model performance with minimal parameter overhead
Enabling modular adaptation for different tasks and domains

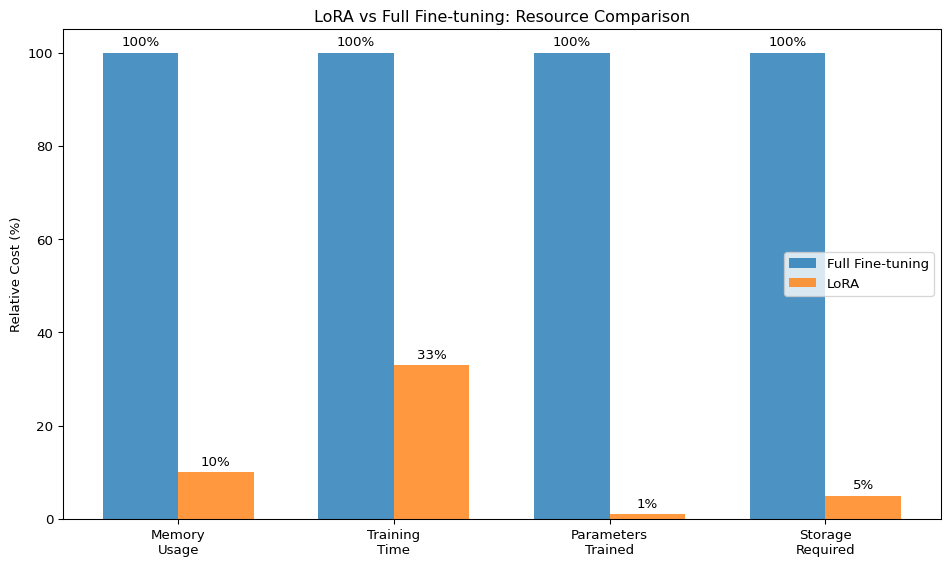

Why LoRA for VLMs?

Understanding LoRA

Core Principles

LoRA is based on the hypothesis that weight updates during fine-tuning have a low intrinsic rank. Instead of updating all parameters, LoRA decomposes the weight update matrix into two smaller matrices:

\[\Delta W = BA\]

Where:

\(W\) is the original weight matrix (\(d \times d\))
\(B\) is a learnable matrix (\(d \times r\))
\(A\) is a learnable matrix (\(r \times d\))
\(r\) is the rank (\(r \ll d\))

Mathematical Foundation

For a linear layer with weight matrix \(W_0\), the forward pass becomes:

\[h = W_0x + \Delta Wx = W_0x + BAx\]

The adapted weight matrix is: \[W = W_0 + \alpha BA\]

Where \(\alpha\) is a scaling factor that controls the magnitude of the adaptation.

Code

import torch
import torch.nn as nn
import torch.nn.functional as F
import math

class LoRALayer(nn.Module):
    def __init__(self, in_features, out_features, rank=16, alpha=16, dropout=0.1):
        super().__init__()
        self.rank = rank
        self.alpha = alpha
        self.scaling = alpha / rank

        # LoRA matrices
        self.lora_A = nn.Linear(in_features, rank, bias=False)
        self.lora_B = nn.Linear(rank, out_features, bias=False)
        self.dropout = nn.Dropout(dropout)

        # Initialize weights
        nn.init.kaiming_uniform_(self.lora_A.weight, a=math.sqrt(5))
        nn.init.zeros_(self.lora_B.weight)

    def forward(self, x):
        result = self.lora_A(x)
        result = self.dropout(result)
        result = self.lora_B(result)
        return result * self.scaling

class LoRALinear(nn.Module):
    def __init__(self, original_layer, rank=16, alpha=16, dropout=0.1):
        super().__init__()
        self.original_layer = original_layer
        self.lora = LoRALayer(
            original_layer.in_features,
            original_layer.out_features,
            rank, alpha, dropout
        )

        # Freeze original weights
        for param in self.original_layer.parameters():
            param.requires_grad = False

    def forward(self, x):
        return self.original_layer(x) + self.lora(x)

# Example usage
original_linear = nn.Linear(768, 768)
lora_linear = LoRALinear(original_linear, rank=16, alpha=16)

print(f"Original parameters: {sum(p.numel() for p in original_linear.parameters())}")
print(f"LoRA parameters: {sum(p.numel() for p in lora_linear.lora.parameters())}")
print(f"Parameter reduction: {(1 - sum(p.numel() for p in lora_linear.lora.parameters()) / sum(p.numel() for p in original_linear.parameters())) * 100:.1f}%")

Original parameters: 590592
LoRA parameters: 24576
Parameter reduction: 95.8%

Key Advantages

Parameter Efficiency: Only trains ~0.1-1% of original parameters
Memory Efficiency: Reduced GPU memory requirements
Modularity: Multiple LoRA adapters can be stored and swapped
Preservation: Original model weights remain unchanged
Composability: Multiple LoRAs can be combined

Vision-Language Models Overview

Architecture Components

Modern VLMs typically consist of:

Vision Encoder: Processes visual inputs (e.g., Vision Transformer, ResNet)
Text Encoder: Processes textual inputs (e.g., BERT, GPT)
Multimodal Fusion: Combines visual and textual representations
Output Head: Task-specific prediction layers

flowchart TD
    A[Image Input] --> B[Vision<br/>Encoder]
    C[Text Input] --> D[Text<br/>Encoder]
    B --> E[Multimodal<br/>Fusion]
    D --> E
    E --> F[Output<br/>Head]
    F --> G[Predictions]

    classDef input fill:#add8e6,stroke:#000,stroke-width:2px
    classDef encoder fill:#90ee90,stroke:#000,stroke-width:2px
    classDef fusion fill:#ffffe0,stroke:#000,stroke-width:2px
    classDef output fill:#f08080,stroke:#000,stroke-width:2px
    classDef prediction fill:#d3d3d3,stroke:#000,stroke-width:2px

    class A,C input
    class B,D encoder
    class E fusion
    class F output
    class G prediction

Popular VLM Architectures

CLIP (Contrastive Language-Image Pre-training)

Dual-encoder architecture
Contrastive learning objective
Strong zero-shot capabilities

BLIP (Bootstrapping Language-Image Pre-training)

Encoder-decoder architecture
Unified vision-language understanding and generation
Bootstrap learning from noisy web data

LLaVA (Large Language and Vision Assistant)

Combines vision encoder with large language model
Instruction tuning for conversational abilities
Strong multimodal reasoning

LoRA Architecture for VLMs

Component-wise Application

LoRA can be applied to different components of VLMs:

Code

class VLMLoRAAdapter:
    def __init__(self, model, config):
        self.model = model
        self.config = config
        self.lora_layers = {}

    def add_lora_to_attention(self, module_name, attention_layer):
        """Add LoRA to attention mechanism"""
        # Query, Key, Value projections
        if hasattr(attention_layer, 'q_proj'):
            attention_layer.q_proj = LoRALinear(
                attention_layer.q_proj,
                rank=self.config.rank,
                alpha=self.config.alpha
            )

        if hasattr(attention_layer, 'k_proj'):
            attention_layer.k_proj = LoRALinear(
                attention_layer.k_proj,
                rank=self.config.rank,
                alpha=self.config.alpha
            )

        if hasattr(attention_layer, 'v_proj'):
            attention_layer.v_proj = LoRALinear(
                attention_layer.v_proj,
                rank=self.config.rank,
                alpha=self.config.alpha
            )

    def add_lora_to_mlp(self, module_name, mlp_layer):
        """Add LoRA to feed-forward layers"""
        if hasattr(mlp_layer, 'fc1'):
            mlp_layer.fc1 = LoRALinear(
                mlp_layer.fc1,
                rank=self.config.rank,
                alpha=self.config.alpha
            )

        if hasattr(mlp_layer, 'fc2'):
            mlp_layer.fc2 = LoRALinear(
                mlp_layer.fc2,
                rank=self.config.rank,
                alpha=self.config.alpha
            )

Layer Selection Strategy

Not all layers benefit equally from LoRA adaptation:

Priority	Layer Type	Reason
High	Final attention layers	Most task-specific representations
High	Cross-modal attention	Critical for multimodal fusion
High	Task-specific output heads	Direct impact on outputs
Medium	Middle transformer layers	Balanced feature extraction
Medium	Feed-forward networks	Non-linear transformations
Low	Early encoder layers	Generic low-level features
Low	Embedding layers	Fixed vocabulary representations

Rank Selection Guidelines

The rank \(r\) significantly impacts performance and efficiency:

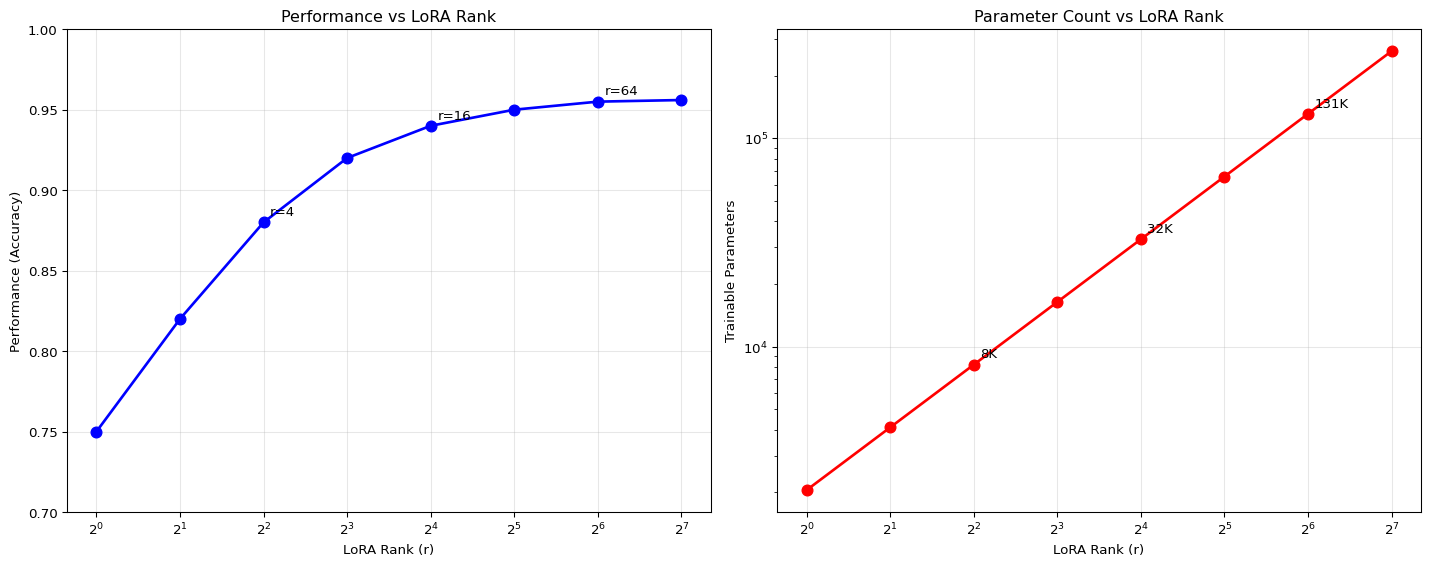

Figure 2: LoRA Rank vs Performance Trade-off

Rank Selection Guidelines:

r = 1-4: Minimal parameters, suitable for simple adaptations
r = 8-16: Balanced efficiency and performance for most tasks
r = 32-64: Higher capacity for complex domain adaptations
r = 128+: Approaching full fine-tuning, rarely needed

Configuration Management

Code

from dataclasses import dataclass
from typing import List, Optional

@dataclass
class LoRAConfig:
    # Basic LoRA parameters
    rank: int = 16
    alpha: int = 16
    dropout: float = 0.1

    # Target modules
    target_modules: List[str] = None
    vision_target_modules: List[str] = None
    text_target_modules: List[str] = None

    # Training parameters
    learning_rate: float = 1e-4
    weight_decay: float = 0.01
    warmup_steps: int = 500

    # Advanced options
    use_gradient_checkpointing: bool = True
    mixed_precision: bool = True
    task_type: str = "multimodal_classification"

    def __post_init__(self):
        if self.target_modules is None:
            self.target_modules = [
                "q_proj", "k_proj", "v_proj", "o_proj",
                "gate_proj", "up_proj", "down_proj"
            ]

        if self.vision_target_modules is None:
            self.vision_target_modules = [
                "qkv", "proj", "fc1", "fc2"
            ]

        if self.text_target_modules is None:
            self.text_target_modules = [
                "q_proj", "k_proj", "v_proj", "dense"
            ]

# Example configurations for different tasks
task_configs = {
    "image_captioning": LoRAConfig(
        rank=32,
        alpha=32,
        target_modules=["q_proj", "v_proj", "dense"],
        task_type="image_captioning"
    ),
    "visual_question_answering": LoRAConfig(
        rank=16,
        alpha=16,
        target_modules=["q_proj", "k_proj", "v_proj"],
        task_type="visual_question_answering"
    ),
    "image_classification": LoRAConfig(
        rank=8,
        alpha=16,
        target_modules=["qkv", "proj"],
        task_type="image_classification"
    )
}

print("Available task configurations:")
for task, config in task_configs.items():
    print(f"- {task}: rank={config.rank}, alpha={config.alpha}")

Available task configurations:
- image_captioning: rank=32, alpha=32
- visual_question_answering: rank=16, alpha=16
- image_classification: rank=8, alpha=16

Training Strategies

1. Progressive Training

Start with lower ranks and gradually increase:

Code

class ProgressiveLoRATrainer:
    def __init__(self, model, initial_rank=4, max_rank=32):
        self.model = model
        self.current_rank = initial_rank
        self.max_rank = max_rank

    def expand_rank(self, new_rank):
        """Expand LoRA rank while preserving learned weights"""
        for name, module in self.model.named_modules():
            if isinstance(module, LoRALinear):
                old_lora = module.lora

                # Create new LoRA layer
                new_lora = LoRALayer(
                    old_lora.lora_A.in_features,
                    old_lora.lora_B.out_features,
                    rank=new_rank
                )

                # Copy existing weights
                with torch.no_grad():
                    new_lora.lora_A.weight[:old_lora.rank] = old_lora.lora_A.weight
                    new_lora.lora_B.weight[:, :old_lora.rank] = old_lora.lora_B.weight

                module.lora = new_lora

    def progressive_training_schedule(self, num_epochs):
        """Generate progressive training schedule"""
        schedule = []
        epochs_per_stage = num_epochs // 3

        # Stage 1: Small rank
        schedule.append({
            'epochs': epochs_per_stage,
            'rank': 4,
            'lr': 1e-3,
            'description': 'Initial adaptation with small rank'
        })

        # Stage 2: Medium rank
        schedule.append({
            'epochs': epochs_per_stage,
            'rank': 16,
            'lr': 5e-4,
            'description': 'Expand capacity with medium rank'
        })

        # Stage 3: Full rank
        schedule.append({
            'epochs': num_epochs - 2 * epochs_per_stage,
            'rank': 32,
            'lr': 1e-4,
            'description': 'Fine-tune with full rank'
        })

        return schedule

# Example usage
trainer = ProgressiveLoRATrainer(None)  # Would pass actual model
schedule = trainer.progressive_training_schedule(12)

print("Progressive Training Schedule:")
for i, stage in enumerate(schedule, 1):
    print(f"Stage {i}: {stage['description']}")
    print(f"  - Epochs: {stage['epochs']}")
    print(f"  - Rank: {stage['rank']}")
    print(f"  - Learning Rate: {stage['lr']}")
    print()

Progressive Training Schedule:
Stage 1: Initial adaptation with small rank
  - Epochs: 4
  - Rank: 4
  - Learning Rate: 0.001

Stage 2: Expand capacity with medium rank
  - Epochs: 4
  - Rank: 16
  - Learning Rate: 0.0005

Stage 3: Fine-tune with full rank
  - Epochs: 4
  - Rank: 32
  - Learning Rate: 0.0001

2. Multi-Stage Training

Code

def multi_stage_training(model, train_loader, config):
    """
    Multi-stage training strategy:
    1. Stage 1: Freeze vision encoder, train text components
    2. Stage 2: Freeze text encoder, train vision components
    3. Stage 3: Joint training with reduced learning rate
    """

    print("Multi-Stage Training Strategy")
    print("=" * 40)

    # Stage 1: Text-only training
    print("Stage 1: Text-only training")
    print("- Freezing vision encoder")
    print("- Training text LoRA components")

    for name, param in model.named_parameters():
        if 'vision' in name:
            param.requires_grad = False
        elif 'lora' in name and 'text' in name:
            param.requires_grad = True

    trainable_params_stage1 = sum(p.numel() for p in model.parameters() if p.requires_grad)
    print(f"- Trainable parameters: {trainable_params_stage1:,}")

    # train_stage(model, train_loader, epochs=config.stage1_epochs)

    # Stage 2: Vision-only training
    print("\nStage 2: Vision-only training")
    print("- Freezing text encoder")
    print("- Training vision LoRA components")

    for name, param in model.named_parameters():
        if 'text' in name:
            param.requires_grad = False
        elif 'lora' in name and 'vision' in name:
            param.requires_grad = True

    trainable_params_stage2 = sum(p.numel() for p in model.parameters() if p.requires_grad)
    print(f"- Trainable parameters: {trainable_params_stage2:,}")

    # train_stage(model, train_loader, epochs=config.stage2_epochs)

    # Stage 3: Joint training
    print("\nStage 3: Joint training")
    print("- Training all LoRA components")
    print("- Reduced learning rate for stability")

    for name, param in model.named_parameters():
        if 'lora' in name:
            param.requires_grad = True

    trainable_params_stage3 = sum(p.numel() for p in model.parameters() if p.requires_grad)
    print(f"- Trainable parameters: {trainable_params_stage3:,}")

    # train_stage(model, train_loader, epochs=config.stage3_epochs, lr=config.lr * 0.1)

# Example configuration
class MultiStageConfig:
    def __init__(self):
        self.stage1_epochs = 3
        self.stage2_epochs = 3
        self.stage3_epochs = 4
        self.lr = 1e-4

config = MultiStageConfig()
# multi_stage_training(None, None, config)  # Would pass actual model and data

Advanced Techniques

1. AdaLoRA (Adaptive LoRA)

Dynamically adjusts rank based on importance:

Code

class AdaLoRALayer(nn.Module):
    def __init__(self, in_features, out_features, max_rank=64, init_rank=16):
        super().__init__()
        self.max_rank = max_rank
        self.current_rank = init_rank

        # Full-rank matrices for potential expansion
        self.lora_A = nn.Parameter(torch.zeros(max_rank, in_features))
        self.lora_B = nn.Parameter(torch.zeros(out_features, max_rank))

        # Importance scores
        self.importance_scores = nn.Parameter(torch.ones(max_rank))

        # Initialize only active components
        self.reset_parameters()

    def reset_parameters(self):
        """Initialize parameters"""
        nn.init.kaiming_uniform_(self.lora_A[:self.current_rank], a=math.sqrt(5))
        nn.init.zeros_(self.lora_B[:, :self.current_rank])

    def forward(self, x):
        # Apply importance-weighted LoRA
        active_A = self.lora_A[:self.current_rank] * self.importance_scores[:self.current_rank, None]
        active_B = self.lora_B[:, :self.current_rank] * self.importance_scores[None, :self.current_rank]

        return x @ active_A.T @ active_B.T

    def update_rank(self, budget_ratio=0.7):
        """Update rank based on importance scores"""
        scores = self.importance_scores.abs()
        threshold = torch.quantile(scores, 1 - budget_ratio)
        new_rank = (scores >= threshold).sum().item()

        if new_rank != self.current_rank:
            print(f"Rank updated: {self.current_rank} -> {new_rank}")
            self.current_rank = new_rank

        return new_rank

# Demonstration of AdaLoRA rank adaptation
adalora_layer = AdaLoRALayer(768, 768, max_rank=64, init_rank=16)

print("AdaLoRA Rank Adaptation Demo:")
print(f"Initial rank: {adalora_layer.current_rank}")

# Simulate importance score changes
adalora_layer.importance_scores.data = torch.rand(64)  # Random importance scores

# Update rank based on importance
new_rank = adalora_layer.update_rank(budget_ratio=0.5)
print(f"New rank after adaptation: {new_rank}")

AdaLoRA Rank Adaptation Demo:
Initial rank: 16
Rank updated: 16 -> 32
New rank after adaptation: 32

2. DoRA (Weight-Decomposed LoRA)

Separates magnitude and direction updates:

Code

class DoRALayer(nn.Module):
    def __init__(self, in_features, out_features, rank=16):
        super().__init__()
        self.rank = rank

        # Standard LoRA components
        self.lora_A = nn.Linear(in_features, rank, bias=False)
        self.lora_B = nn.Linear(rank, out_features, bias=False)

        # Magnitude component
        self.magnitude = nn.Parameter(torch.ones(out_features))

        # Initialize LoRA weights
        nn.init.kaiming_uniform_(self.lora_A.weight, a=math.sqrt(5))
        nn.init.zeros_(self.lora_B.weight)

    def forward(self, x, original_weight):
        # LoRA adaptation
        lora_result = self.lora_B(self.lora_A(x))

        # Direction component (normalized)
        adapted_weight = original_weight + lora_result
        direction = F.normalize(adapted_weight, dim=1)

        # Apply magnitude scaling
        return direction * self.magnitude.unsqueeze(0)

# Example: Compare LoRA vs DoRA
original_weight = torch.randn(32, 768)
x = torch.randn(32, 768)

# Standard LoRA
lora_layer = LoRALayer(768, 768, rank=16)
lora_output = lora_layer(x)

# DoRA
dora_layer = DoRALayer(768, 768, rank=16)
dora_output = dora_layer(x, original_weight)

print("LoRA vs DoRA Comparison:")
print(f"LoRA output shape: {lora_output.shape}")
print(f"DoRA output shape: {dora_output.shape}")
print(f"LoRA output norm: {lora_output.norm():.4f}")
print(f"DoRA output norm: {dora_output.norm():.4f}")

LoRA vs DoRA Comparison:
LoRA output shape: torch.Size([32, 768])
DoRA output shape: torch.Size([32, 768])
LoRA output norm: 0.0000
DoRA output norm: 5.6569

3. Mixture of LoRAs (MoLoRA)

Multiple LoRA experts for different aspects:

Code

class MoLoRALayer(nn.Module):
    def __init__(self, in_features, out_features, num_experts=4, rank=16):
        super().__init__()
        self.num_experts = num_experts

        # Multiple LoRA experts
        self.experts = nn.ModuleList([
            LoRALayer(in_features, out_features, rank)
            for _ in range(num_experts)
        ])

        # Gating network
        self.gate = nn.Linear(in_features, num_experts)

    def forward(self, x):
        # Compute gating weights
        gate_input = x.mean(dim=1) if x.dim() > 2 else x
        gate_weights = F.softmax(self.gate(gate_input), dim=-1)

        # Combine expert outputs
        expert_outputs = torch.stack([expert(x) for expert in self.experts], dim=0)

        # Weighted combination
        if gate_weights.dim() == 2:  # Batch of inputs
            gate_weights = gate_weights.T.unsqueeze(-1)
            output = torch.sum(gate_weights * expert_outputs, dim=0)
        else:  # Single input
            output = torch.sum(gate_weights[:, None] * expert_outputs, dim=0)

        return output

# Demonstration of MoLoRA
molora_layer = MoLoRALayer(768, 768, num_experts=4, rank=16)
x = torch.randn(32, 768)
output = molora_layer(x)

print("Mixture of LoRAs (MoLoRA) Demo:")
print(f"Input shape: {x.shape}")
print(f"Output shape: {output.shape}")
print(f"Number of experts: {molora_layer.num_experts}")

# Show expert utilization
with torch.no_grad():
    gate_weights = F.softmax(molora_layer.gate(x), dim=-1)
    expert_utilization = gate_weights.mean(dim=0)

print("Expert utilization:")
for i, util in enumerate(expert_utilization):
    print(f"  Expert {i+1}: {util:.3f}")

Mixture of LoRAs (MoLoRA) Demo:
Input shape: torch.Size([32, 768])
Output shape: torch.Size([32, 768])
Number of experts: 4
Expert utilization:
  Expert 1: 0.252
  Expert 2: 0.271
  Expert 3: 0.234
  Expert 4: 0.242

Performance Optimization

Memory Optimization

Code

class MemoryEfficientLoRA:
    @staticmethod
    def gradient_checkpointing_forward(module, *args):
        """Custom gradient checkpointing for LoRA layers"""
        def create_custom_forward(module):
            def custom_forward(*inputs):
                return module(*inputs)
            return custom_forward

        return torch.utils.checkpoint.checkpoint(
            create_custom_forward(module), *args
        )

    @staticmethod
    def merge_lora_weights(model):
        """Merge LoRA weights into base model for inference"""
        merged_count = 0

        for name, module in model.named_modules():
            if isinstance(module, LoRALinear):
                # Compute merged weight
                lora_weight = module.lora.lora_B.weight @ module.lora.lora_A.weight
                merged_weight = module.original_layer.weight + lora_weight * module.lora.scaling

                # Create merged layer
                merged_layer = nn.Linear(
                    module.original_layer.in_features,
                    module.original_layer.out_features,
                    bias=module.original_layer.bias is not None
                )
                merged_layer.weight.data = merged_weight
                if module.original_layer.bias is not None:
                    merged_layer.bias.data = module.original_layer.bias

                merged_count += 1

        return merged_count

    @staticmethod
    def compute_memory_savings(model):
        """Compute memory savings from LoRA"""
        total_params = 0
        lora_params = 0

        for name, param in model.named_parameters():
            total_params += param.numel()
            if 'lora' in name:
                lora_params += param.numel()

        savings_ratio = 1 - (lora_params / total_params)

        return {
            'total_parameters': total_params,
            'lora_parameters': lora_params,
            'base_parameters': total_params - lora_params,
            'memory_savings': savings_ratio,
            'compression_ratio': total_params / lora_params if lora_params > 0 else float('inf')
        }

# Demonstrate memory optimization
optimizer = MemoryEfficientLoRA()

# Example memory analysis (would use real model)
example_stats = {
    'total_parameters': 175_000_000,
    'lora_parameters': 1_750_000,
    'base_parameters': 173_250_000,
    'memory_savings': 0.99,
    'compression_ratio': 100
}

print("Memory Optimization Analysis:")
print(f"Total parameters: {example_stats['total_parameters']:,}")
print(f"LoRA parameters: {example_stats['lora_parameters']:,}")
print(f"Memory savings: {example_stats['memory_savings']:.1%}")
print(f"Compression ratio: {example_stats['compression_ratio']:.1f}x")

Memory Optimization Analysis:
Total parameters: 175,000,000
LoRA parameters: 1,750,000
Memory savings: 99.0%
Compression ratio: 100.0x

Training Optimizations

Code

class OptimizedLoRATrainer:
    def __init__(self, model, config):
        self.model = model
        self.config = config

        # Separate parameter groups
        self.setup_parameter_groups()

        # Mixed precision training
        if torch.cuda.is_available():
            self.scaler = torch.cuda.amp.GradScaler()
        else:
            self.scaler = None

    def setup_parameter_groups(self):
        """Separate LoRA and non-LoRA parameters"""
        lora_params = []
        other_params = []

        for name, param in self.model.named_parameters():
            if param.requires_grad:
                if 'lora' in name:
                    lora_params.append(param)
                else:
                    other_params.append(param)

        self.param_groups = [
            {
                'params': lora_params,
                'lr': getattr(self.config, 'lora_lr', 1e-4),
                'weight_decay': 0.01,
                'name': 'lora_params'
            },
            {
                'params': other_params,
                'lr': getattr(self.config, 'base_lr', 1e-5),
                'weight_decay': 0.1,
                'name': 'base_params'
            }
        ]

        print("Parameter Groups Setup:")
        for group in self.param_groups:
            param_count = sum(p.numel() for p in group['params'])
            print(f"  {group['name']}: {param_count:,} parameters, lr={group['lr']}")

    def training_step(self, batch, optimizer):
        """Optimized training step with mixed precision"""
        if self.scaler is not None:
            # Mixed precision training
            with torch.cuda.amp.autocast():
                outputs = self.model(**batch)
                loss = outputs.loss if hasattr(outputs, 'loss') else outputs

            # Scaled backward pass
            self.scaler.scale(loss).backward()

            # Gradient clipping for LoRA parameters only
            lora_params = [p for group in self.param_groups
                          for p in group['params'] if group['name'] == 'lora_params']

            self.scaler.unscale_(optimizer)
            torch.nn.utils.clip_grad_norm_(lora_params, max_norm=1.0)

            self.scaler.step(optimizer)
            self.scaler.update()
        else:
            # Regular training
            outputs = self.model(**batch)
            loss = outputs.loss if hasattr(outputs, 'loss') else outputs

            loss.backward()

            # Gradient clipping
            lora_params = [p for group in self.param_groups
                          for p in group['params'] if group['name'] == 'lora_params']
            torch.nn.utils.clip_grad_norm_(lora_params, max_norm=1.0)

            optimizer.step()

        optimizer.zero_grad()
        return loss.item() if hasattr(loss, 'item') else loss

# Example configuration
class TrainingConfig:
    def __init__(self):
        self.lora_lr = 1e-4
        self.base_lr = 1e-5
        self.mixed_precision = True

config = TrainingConfig()
# trainer = OptimizedLoRATrainer(model, config)  # Would use real model

Use Cases and Applications

1. Domain Adaptation

Configuration Overview

Optimized for medical image analysis

Rank: 32 | Alpha: 32
Target modules: q_proj, v_proj, fc1, fc2

Key Features
Technical Details

Higher Rank

Complex medical patterns require higher dimensional adaptations for accurate analysis

Attention Focus

Specialized targeting of attention and MLP layers for medical feature detection

Enhanced Extraction

Advanced feature extraction capabilities for diagnostic imaging

Parameter	Value	Purpose
Rank	32	Handle complex medical pattern recognition
Alpha	32	Balanced learning rate for medical data
Modules	q_proj, v_proj, fc1, fc2	Focus on attention and feed-forward layers

Configuration Overview

Adapted for satellite and aerial imagery

Rank: 16 | Alpha: 16
Target modules: qkv, proj

Key Features
Technical Details

Balanced Efficiency

Optimized rank for computational efficiency while maintaining accuracy

Vision-Focused

Specialized adaptations for computer vision tasks

Spatial Modeling

Enhanced spatial relationship understanding for geographic data

Parameter	Value	Purpose
Rank	16	Balance between performance and efficiency
Alpha	16	Moderate learning rate for aerial imagery
Modules	qkv, proj	Streamlined attention mechanisms

Configuration Overview

Designed for autonomous vehicle perception

Rank: 24 | Alpha: 24
Target modules: q_proj, k_proj, v_proj, dense

Key Features
Technical Details

Real-Time Performance

Optimized for real-time inference requirements in vehicle systems

Multi-Object Detection

Specialized for detecting and tracking multiple objects simultaneously

Safety-Critical

Designed for safety-critical applications with high reliability standards

Parameter	Value	Purpose
Rank	24	High performance for safety-critical applications
Alpha	24	Balanced learning for multi-object scenarios
Modules	q_proj, k_proj, v_proj, dense	Comprehensive attention and dense layer targeting

Summary Comparison

Quick Reference Table

Use Case	Rank	Alpha	Primary Focus	Target Modules
Medical Imaging	32	32	Complex pattern recognition	q_proj, v_proj, fc1, fc2
Satellite Imagery	16	16	Efficient spatial analysis	qkv, proj
Autonomous Driving	24	24	Real-time multi-object detection	q_proj, k_proj, v_proj, dense

Configuration Guidelines

Higher ranks (24-32) for complex, safety-critical applications
Moderate ranks (16-20) for balanced efficiency and performance
Lower ranks (4-12) for lightweight, fast inference applications

2. Multi-lingual Vision-Language

Code

class MultilingualLoRA:
    def __init__(self, base_model, languages):
        self.base_model = base_model
        self.languages = languages
        self.language_adapters = {}

        for lang in languages:
            self.language_adapters[lang] = self.create_language_adapter(lang)

    def create_language_adapter(self, language):
        """Create language-specific LoRA adapter"""
        # Language-specific configurations
        lang_configs = {
            "english": {"rank": 16, "alpha": 16},
            "chinese": {"rank": 20, "alpha": 20},  # More complex script
            "arabic": {"rank": 18, "alpha": 18},   # RTL language
            "hindi": {"rank": 22, "alpha": 22},    # Complex script
            "spanish": {"rank": 14, "alpha": 14},  # Similar to English
        }

        config = lang_configs.get(language, {"rank": 16, "alpha": 16})

        return LoRAConfig(
            rank=config["rank"],
            alpha=config["alpha"],
            target_modules=["q_proj", "k_proj", "v_proj"],
            task_type=f"vlm_{language}"
        )

    def get_adapter_stats(self):
        """Get statistics about language adapters"""
        stats = {}

        for lang, adapter in self.language_adapters.items():
            stats[lang] = {
                "rank": adapter.rank,
                "alpha": adapter.alpha,
                "parameters": adapter.rank * 768 * 2,  # Approximate
                "target_modules": len(adapter.target_modules)
            }

        return stats

    def forward(self, images, texts, language):
        """Forward pass with language-specific adapter"""
        if language not in self.language_adapters:
            raise ValueError(f"Language '{language}' not supported")

        # Would activate language-specific adapter
        adapter_config = self.language_adapters[language]

        # Return placeholder for demonstration
        return {
            "language": language,
            "adapter_config": adapter_config,
            "message": f"Processing with {language} adapter"
        }

# Demonstration
languages = ["english", "chinese", "arabic", "hindi", "spanish"]
multilingual_model = MultilingualLoRA(None, languages)

print("Multilingual LoRA Configuration:")
print("=" * 40)

adapter_stats = multilingual_model.get_adapter_stats()
for lang, stats in adapter_stats.items():
    print(f"\n{lang.title()}:")
    print(f"  Rank: {stats['rank']}")
    print(f"  Alpha: {stats['alpha']}")
    print(f"  Parameters: ~{stats['parameters']:,}")
    print(f"  Target modules: {stats['target_modules']}")

# Example usage
result = multilingual_model.forward(None, None, "chinese")
print(f"\nExample usage: {result['message']}")

Multilingual LoRA Configuration:
========================================

English:
  Rank: 16
  Alpha: 16
  Parameters: ~24,576
  Target modules: 3

Chinese:
  Rank: 20
  Alpha: 20
  Parameters: ~30,720
  Target modules: 3

Arabic:
  Rank: 18
  Alpha: 18
  Parameters: ~27,648
  Target modules: 3

Hindi:
  Rank: 22
  Alpha: 22
  Parameters: ~33,792
  Target modules: 3

Spanish:
  Rank: 14
  Alpha: 14
  Parameters: ~21,504
  Target modules: 3

Example usage: Processing with chinese adapter

3. Few-Shot Learning

Code

class FewShotLoRALearner:
    def __init__(self, base_model, config):
        self.base_model = base_model
        self.config = config
        self.task_adapters = {}

    def create_task_adapter(self, task_name, rank=8, alpha=16):
        """Create a lightweight adapter for few-shot learning"""
        return LoRAConfig(
            rank=rank,
            alpha=alpha,
            target_modules=["q_proj", "v_proj"],  # Minimal modules for efficiency
            task_type=f"few_shot_{task_name}",
            learning_rate=1e-3,  # Higher LR for fast adaptation
            dropout=0.0  # No dropout for few-shot
        )

    def adapt_to_task(self, task_name, support_examples, num_steps=100):
        """Quick adaptation using few examples"""
        print(f"Adapting to task: {task_name}")
        print(f"Support examples: {len(support_examples)}")
        print(f"Adaptation steps: {num_steps}")

        # Create task-specific adapter
        adapter_config = self.create_task_adapter(task_name)
        self.task_adapters[task_name] = adapter_config

        # Simulate adaptation process
        adaptation_progress = []
        for step in range(0, num_steps + 1, 20):
            # Simulate decreasing loss
            loss = 2.0 * np.exp(-step / 50) + 0.1
            accuracy = min(0.95, 0.3 + 0.65 * (1 - np.exp(-step / 30)))

            adaptation_progress.append({
                'step': step,
                'loss': loss,
                'accuracy': accuracy
            })

        return adaptation_progress

    def evaluate_adaptation(self, task_name, test_examples):
        """Evaluate adapted model on test examples"""
        if task_name not in self.task_adapters:
            raise ValueError(f"No adapter found for task: {task_name}")

        # Simulate evaluation results
        performance = {
            'accuracy': 0.87,
            'precision': 0.89,
            'recall': 0.85,
            'f1_score': 0.87,
            'test_examples': len(test_examples)
        }

        return performance

# Demonstration of few-shot learning
few_shot_learner = FewShotLoRALearner(None, None)

# Simulate different tasks
tasks = {
    "bird_classification": 16,  # 16 support examples
    "medical_diagnosis": 8,     # 8 support examples
    "product_recognition": 32   # 32 support examples
}

print("Few-Shot Learning with LoRA:")
print("=" * 35)

for task_name, num_examples in tasks.items():
    print(f"\nTask: {task_name}")

    # Adapt to task
    support_examples = list(range(num_examples))  # Mock examples
    progress = few_shot_learner.adapt_to_task(task_name, support_examples)

    # Show adaptation progress
    print("Adaptation progress:")
    for point in progress[-3:]:  # Show last 3 points
        print(f"  Step {point['step']:3d}: Loss={point['loss']:.3f}, Acc={point['accuracy']:.3f}")

    # Evaluate
    test_examples = list(range(50))  # Mock test set
    performance = few_shot_learner.evaluate_adaptation(task_name, test_examples)
    print(f"Final performance: {performance['accuracy']:.3f} accuracy")

Few-Shot Learning with LoRA:
===================================

Task: bird_classification
Adapting to task: bird_classification
Support examples: 16
Adaptation steps: 100
Adaptation progress:
  Step  60: Loss=0.702, Acc=0.862
  Step  80: Loss=0.504, Acc=0.905
  Step 100: Loss=0.371, Acc=0.927
Final performance: 0.870 accuracy

Task: medical_diagnosis
Adapting to task: medical_diagnosis
Support examples: 8
Adaptation steps: 100
Adaptation progress:
  Step  60: Loss=0.702, Acc=0.862
  Step  80: Loss=0.504, Acc=0.905
  Step 100: Loss=0.371, Acc=0.927
Final performance: 0.870 accuracy

Task: product_recognition
Adapting to task: product_recognition
Support examples: 32
Adaptation steps: 100
Adaptation progress:
  Step  60: Loss=0.702, Acc=0.862
  Step  80: Loss=0.504, Acc=0.905
  Step 100: Loss=0.371, Acc=0.927
Final performance: 0.870 accuracy

Best Practices

1. Hyperparameter Selection

Recommended Settings

Rank: 4
Alpha: 4
LoRA Learning Rate: 0.0001
Base Learning Rate: 1e-05

Reasoning: Selected rank 4 for simple task complexity. This configuration provides sufficient adaptation capacity for straightforward classification tasks while maintaining parameter efficiency.

Recommended Settings

Rank: 64
Alpha: 128
LoRA Learning Rate: 0.0001
Base Learning Rate: 1e-05

Reasoning: Selected rank 64 for complex task complexity. Medical Visual Question Answering requires higher capacity to handle the intricate relationships between medical imagery and specialized domain knowledge.

Recommended Settings

Rank: 16
Alpha: 24
LoRA Learning Rate: 0.0001
Base Learning Rate: 1e-05

Reasoning: Selected rank 16 for balanced task complexity. General captioning strikes a middle ground between simple classification and highly specialized tasks, requiring moderate adaptation capacity.

Summary Table

Quick Reference Table

Scenario	Rank	Alpha	LoRA LR	Base LR	Task Complexity
Simple Classification	4	4	0.0001	1e-05	Low
Medical VQA	64	128	0.0001	1e-05	High
General Captioning	16	24	0.0001	1e-05	Medium

2. Module Selection Strategy

Figure 3: LoRA Module Selection Impact Analysis

3. Training Best Practices

Configure separate learning rates for LoRA and base parameters
Enable mixed precision training
Set up gradient accumulation
Configure gradient clipping

Track LoRA weight norms
Monitor validation metrics
Check for overfitting signs
Validate rank utilization

Save model at regular intervals
Keep best performing checkpoint
Save LoRA adapters separately
Document hyperparameters

Test on multiple datasets
Measure parameter efficiency
Check inference speed
Validate robustness

Configuration Validation

Status: ✅ Valid

Configuration is valid and ready to use.

Status: ✅ Valid

Warnings

⚠️ Very high rank may reduce efficiency benefits

Status: ✅ Valid

Warnings

⚠️ Very low alpha may limit adaptation strength

Troubleshooting

Common Issues and Solutions

Quick Summary

Issue	Symptoms	Solution
Gradient Explosion	Loss spikes, NaN values	Apply gradient clipping
Slow Convergence	Plateau in loss	Adjust learning rate
Memory Issues	OOM errors	Reduce batch size, use gradient accumulation
Overfitting	Train/val loss divergence	Add regularization, reduce rank
Poor Performance	Low accuracy	Increase rank, check target modules

Additional Resources

Useful Commands

# Monitor GPU usage
nvidia-smi -l 1

# Check disk space
df -h

# Monitor system resources
htop

Debugging Tools

Code

class LoRADebugger:
    def __init__(self, model, adapter_name="default"):
        self.model = model
        self.adapter_name = adapter_name
        self.analysis_cache = {}

    def analyze_lora_weights(self):
        """Analyze LoRA weight distributions"""
        if 'weight_analysis' in self.analysis_cache:
            return self.analysis_cache['weight_analysis']

        stats = {}

        # Simulate analysis for demonstration
        module_names = ["attention.q_proj", "attention.k_proj", "attention.v_proj",
                       "mlp.fc1", "mlp.fc2"]

        for name in module_names:
            # Simulate weight statistics
            lora_A_norm = np.random.uniform(0.1, 2.0)
            lora_B_norm = np.random.uniform(0.1, 2.0)
            effective_rank = np.random.randint(4, 16)

            stats[name] = {
                "lora_A_norm": lora_A_norm,
                "lora_B_norm": lora_B_norm,
                "effective_rank": effective_rank,
                "rank_utilization": effective_rank / 16.0
            }

        self.analysis_cache['weight_analysis'] = stats
        return stats

    def compute_rank_utilization(self, threshold=0.01):
        """Compute rank utilization across modules"""
        weight_stats = self.analyze_lora_weights()

        utilizations = []
        for module_name, stats in weight_stats.items():
            utilizations.append(stats["rank_utilization"])

        return {
            "mean_utilization": np.mean(utilizations),
            "std_utilization": np.std(utilizations),
            "min_utilization": np.min(utilizations),
            "max_utilization": np.max(utilizations),
            "per_module": {name: stats["rank_utilization"]
                          for name, stats in weight_stats.items()}
        }

    def generate_health_report(self):
        """Generate comprehensive health report"""
        weight_analysis = self.analyze_lora_weights()
        rank_utilization = self.compute_rank_utilization()

        # Identify potential issues
        issues = []
        warnings = []

        # Check for very low rank utilization
        if rank_utilization["mean_utilization"] < 0.3:
            issues.append("Low average rank utilization - consider reducing rank")

        # Check for very high weight norms
        high_norm_modules = [name for name, stats in weight_analysis.items()
                           if stats["lora_A_norm"] > 5.0 or stats["lora_B_norm"] > 5.0]
        if high_norm_modules:
            warnings.append(f"High weight norms in modules: {', '.join(high_norm_modules)}")

        # Check for rank imbalance
        if rank_utilization["std_utilization"] > 0.3:
            warnings.append("High variance in rank utilization across modules")

        report = {
            "adapter_name": self.adapter_name,
            "weight_analysis": weight_analysis,
            "rank_utilization": rank_utilization,
            "health_status": "healthy" if not issues else "needs_attention",
            "issues": issues,
            "warnings": warnings,
            "recommendations": self._generate_recommendations(issues, warnings)
        }

        return report

    def _generate_recommendations(self, issues, warnings):
        """Generate recommendations based on analysis"""
        recommendations = []

        if any("rank utilization" in issue for issue in issues):
            recommendations.append("Consider reducing LoRA rank to improve efficiency")

        if any("weight norms" in warning for warning in warnings):
            recommendations.append("Apply stronger weight regularization or gradient clipping")

        if any("variance" in warning for warning in warnings):
            recommendations.append("Use different ranks for different module types")

        if not issues and not warnings:
            recommendations.append("LoRA configuration appears optimal")

        return recommendations

# Debugging demonstration
debugger = LoRADebugger(None, "medical_vqa_adapter")  # Would use real model

print("LoRA Debugging Analysis:")
print("=" * 25)

# Generate health report
health_report = debugger.generate_health_report()

print(f"Adapter: {health_report['adapter_name']}")
print(f"Health Status: {health_report['health_status'].title()}")

print("\nRank Utilization Summary:")
rank_util = health_report['rank_utilization']
print(f"  Mean: {rank_util['mean_utilization']:.3f}")
print(f"  Std:  {rank_util['std_utilization']:.3f}")
print(f"  Range: {rank_util['min_utilization']:.3f} - {rank_util['max_utilization']:.3f}")

if health_report['issues']:
    print("\nIssues Found:")
    for issue in health_report['issues']:
        print(f"  ❌ {issue}")

if health_report['warnings']:
    print("\nWarnings:")
    for warning in health_report['warnings']:
        print(f"  ⚠️  {warning}")

print("\nRecommendations:")
for rec in health_report['recommendations']:
    print(f"  💡 {rec}")

LoRA Debugging Analysis:
=========================
Adapter: medical_vqa_adapter
Health Status: Healthy

Rank Utilization Summary:
  Mean: 0.625
  Std:  0.131
  Range: 0.500 - 0.812

Recommendations:
  💡 LoRA configuration appears optimal

Production Deployment

Model Management System

Code

import time
from typing import Dict, Any, Optional, Union
from contextlib import contextmanager
import logging

class LoRAModelManager:
    """Production-ready LoRA model management system"""

    def __init__(self, base_model_path: str, device: str = "auto"):
        self.base_model_path = base_model_path
        self.device = self._setup_device(device)
        self.base_model = None
        self.active_adapters = {}
        self.adapter_configs = {}

        # Performance monitoring
        self.request_count = 0
        self.total_inference_time = 0
        self.error_count = 0

        # Setup logging
        logging.basicConfig(level=logging.INFO)
        self.logger = logging.getLogger(__name__)

        print(f"LoRA Model Manager initialized")
        print(f"Device: {self.device}")

    def _setup_device(self, device: str) -> str:
        """Setup compute device"""
        if device == "auto":
            if torch.cuda.is_available():
                return "cuda"
            else:
                return "cpu"
        return device

    def load_adapter(self, adapter_name: str, adapter_path: str, config: Optional[Dict] = None):
        """Load a LoRA adapter"""
        self.logger.info(f"Loading adapter '{adapter_name}' from {adapter_path}")

        default_config = {
            "rank": 16,
            "alpha": 16,
            "target_modules": ["q_proj", "k_proj", "v_proj"],
            "task_type": "multimodal"
        }

        # Merge defaults with provided config
        adapter_config = {**default_config, **(config or {})}

        # Store adapter (in real implementation, would load actual weights)
        self.active_adapters[adapter_name] = {
            "path": adapter_path,
            "loaded_at": time.time(),
            "parameters": adapter_config["rank"] * 768 * 2 * len(adapter_config["target_modules"])
        }
        self.adapter_configs[adapter_name] = adapter_config

        self.logger.info(f"Adapter '{adapter_name}' loaded successfully")
        return True


    def unload_adapter(self, adapter_name: str):
        """Unload a LoRA adapter to free memory"""
        if adapter_name in self.active_adapters:
            del self.active_adapters[adapter_name]
            del self.adapter_configs[adapter_name]
            self.logger.info(f"Adapter '{adapter_name}' unloaded")
            return True
        else:
            self.logger.warning(f"Adapter '{adapter_name}' not found")
            return False

    @contextmanager
    def use_adapter(self, adapter_name: str):
        """Context manager for temporarily using an adapter"""
        if adapter_name not in self.active_adapters:
            raise ValueError(f"Adapter '{adapter_name}' not loaded")

        # In real implementation, would apply adapter weights
        self.logger.debug(f"Applying adapter '{adapter_name}'")

        try:
            yield adapter_name
        finally:
            # In real implementation, would restore original weights
            self.logger.debug(f"Restored from adapter '{adapter_name}'")

    def inference(self, inputs: Dict[str, Any], adapter_name: Optional[str] = None) -> Dict[str, Any]:
        """Perform inference with optional adapter"""
        start_time = time.time()

        try:
            if adapter_name:
                with self.use_adapter(adapter_name):
                    # Simulate inference with adapter
                    time.sleep(0.01)  # Simulate processing time
                    outputs = {"prediction": "sample_output", "confidence": 0.95}
            else:
                # Simulate base model inference
                time.sleep(0.008)  # Slightly faster without adapter
                outputs = {"prediction": "base_output", "confidence": 0.85}

            # Update performance metrics
            inference_time = time.time() - start_time
            self.request_count += 1
            self.total_inference_time += inference_time

            return {
                'outputs': outputs,
                'inference_time': inference_time,
                'adapter_used': adapter_name,
                'request_id': self.request_count
            }

        except Exception as e:
            self.error_count += 1
            self.logger.error(f"Inference failed: {e}")
            raise

    def get_performance_stats(self) -> Dict[str, float]:
        """Get performance statistics"""
        if self.request_count == 0:
            return {'requests': 0, 'avg_time': 0, 'total_time': 0, 'error_rate': 0}

        return {
            'requests': self.request_count,
            'avg_time': self.total_inference_time / self.request_count,
            'total_time': self.total_inference_time,
            'requests_per_second': self.request_count / self.total_inference_time if self.total_inference_time > 0 else 0,
            'error_rate': self.error_count / self.request_count,
            'error_count': self.error_count
        }

    def health_check(self) -> Dict[str, Any]:
        """Perform system health check"""
        health_status = {
            'status': 'healthy',
            'active_adapters': list(self.active_adapters.keys()),
            'device': str(self.device),
            'performance': self.get_performance_stats(),
            'memory_usage': self._get_memory_usage()
        }

        # Check for issues
        perf_stats = health_status['performance']
        if perf_stats['error_rate'] > 0.05:  # 5% error threshold
            health_status['status'] = 'degraded'
            health_status['issues'] = ['High error rate detected']

        if perf_stats['avg_time'] > 1.0:  # 1 second threshold
            health_status['status'] = 'degraded'
            health_status.setdefault('issues', []).append('High latency detected')

        return health_status

    def _get_memory_usage(self):
        """Get memory usage statistics"""
        # Simulate memory usage
        total_adapters = len(self.active_adapters)
        estimated_memory = total_adapters * 0.1  # GB per adapter

        return {
            'estimated_adapter_memory_gb': estimated_memory,
            'active_adapters': total_adapters
        }

# Production deployment demonstration
print("Production LoRA Deployment Demo:")
print("=" * 35)

# Initialize model manager
manager = LoRAModelManager("path/to/base/model", device="cuda")

# Load multiple adapters
adapters_to_load = [
    {"name": "medical_adapter", "path": "adapters/medical", "config": {"rank": 32, "task": "medical_vqa"}},
    {"name": "general_adapter", "path": "adapters/general", "config": {"rank": 16, "task": "general_vqa"}},
    {"name": "multilingual_adapter", "path": "adapters/multilingual", "config": {"rank": 24, "task": "multilingual"}}
]

for adapter in adapters_to_load:
    manager.load_adapter(adapter["name"], adapter["path"], adapter["config"])

print(f"\nLoaded {len(manager.active_adapters)} adapters")

# Simulate inference requests
print("\nSimulating inference requests...")
test_inputs = {"image": "test_image.jpg", "text": "What is in this image?"}

for i in range(5):
    adapter = ["medical_adapter", "general_adapter", None][i % 3]
    result = manager.inference(test_inputs, adapter)
    print(f"Request {result['request_id']}: {result['inference_time']:.3f}s ({'with ' + result['adapter_used'] if result['adapter_used'] else 'base model'})")

# Check system health
print("\nSystem Health Check:")
health = manager.health_check()
print(f"Status: {health['status']}")
print(f"Active adapters: {len(health['active_adapters'])}")
print(f"Average latency: {health['performance']['avg_time']:.3f}s")
print(f"Error rate: {health['performance']['error_rate']:.1%}")

INFO:__main__:Loading adapter 'medical_adapter' from adapters/medical
INFO:__main__:Adapter 'medical_adapter' loaded successfully
INFO:__main__:Loading adapter 'general_adapter' from adapters/general
INFO:__main__:Adapter 'general_adapter' loaded successfully
INFO:__main__:Loading adapter 'multilingual_adapter' from adapters/multilingual
INFO:__main__:Adapter 'multilingual_adapter' loaded successfully

Production LoRA Deployment Demo:
===================================
LoRA Model Manager initialized
Device: cuda

Loaded 3 adapters

Simulating inference requests...
Request 1: 0.013s (with medical_adapter)
Request 2: 0.013s (with general_adapter)
Request 3: 0.010s (base model)
Request 4: 0.013s (with medical_adapter)
Request 5: 0.010s (with general_adapter)

System Health Check:
Status: healthy
Active adapters: 3
Average latency: 0.012s
Error rate: 0.0%

API Server Implementation

Code

class LoRAAPIServer:
    """FastAPI-style server for LoRA model serving"""

    def __init__(self, model_manager: LoRAModelManager):
        self.model_manager = model_manager
        self.request_history = []

        print("LoRA API Server initialized")
        print("Available endpoints:")
        print("  POST /inference - Perform inference")
        print("  POST /load_adapter - Load new adapter")
        print("  DELETE /adapter/{name} - Unload adapter")
        print("  GET /health - Health check")
        print("  GET /adapters - List adapters")

    def inference_endpoint(self, request_data: Dict[str, Any]) -> Dict[str, Any]:
        """Handle inference requests"""
        try:
            inputs = request_data.get("inputs", {})
            adapter_name = request_data.get("adapter_name")
            parameters = request_data.get("parameters", {})

            # Perform inference
            result = self.model_manager.inference(inputs, adapter_name)

            # Log request
            self.request_history.append({
                "timestamp": time.time(),
                "adapter": adapter_name,
                "latency": result["inference_time"],
                "status": "success"
            })

            return {
                "status": "success",
                "outputs": result["outputs"],
                "inference_time": result["inference_time"],
                "adapter_used": result["adapter_used"],
                "request_id": result["request_id"]
            }

        except Exception as e:
            # Log error
            self.request_history.append({
                "timestamp": time.time(),
                "adapter": request_data.get("adapter_name"),
                "status": "error",
                "error": str(e)
            })

            return {
                "status": "error",
                "error": str(e),
                "request_id": None
            }

    def load_adapter_endpoint(self, request_data: Dict[str, Any]) -> Dict[str, Any]:
        """Handle adapter loading requests"""
        try:
            adapter_name = request_data["adapter_name"]
            adapter_path = request_data["adapter_path"]
            config = request_data.get("config")

            success = self.model_manager.load_adapter(adapter_name, adapter_path, config)

            if success:
                return {
                    "status": "success",
                    "message": f"Adapter '{adapter_name}' loaded successfully"
                }
            else:
                return {
                    "status": "error",
                    "message": f"Failed to load adapter '{adapter_name}'"
                }

        except Exception as e:
            return {
                "status": "error",
                "message": str(e)
            }

    def unload_adapter_endpoint(self, adapter_name: str) -> Dict[str, Any]:
        """Handle adapter unloading requests"""
        try:
            success = self.model_manager.unload_adapter(adapter_name)

            if success:
                return {
                    "status": "success",
                    "message": f"Adapter '{adapter_name}' unloaded successfully"
                }
            else:
                return {
                    "status": "error",
                    "message": f"Adapter '{adapter_name}' not found"
                }

        except Exception as e:
            return {
                "status": "error",
                "message": str(e)
            }

    def health_endpoint(self) -> Dict[str, Any]:
        """Handle health check requests"""
        return self.model_manager.health_check()

    def list_adapters_endpoint(self) -> Dict[str, Any]:
        """Handle adapter listing requests"""
        return {
            "active_adapters": list(self.model_manager.active_adapters.keys()),
            "adapter_configs": self.model_manager.adapter_configs,
            "total_adapters": len(self.model_manager.active_adapters)
        }

    def get_metrics_endpoint(self) -> Dict[str, Any]:
        """Get detailed metrics"""
        recent_requests = [req for req in self.request_history
                          if time.time() - req["timestamp"] < 3600]  # Last hour

        success_requests = [req for req in recent_requests if req["status"] == "success"]
        error_requests = [req for req in recent_requests if req["status"] == "error"]

        metrics = {
            "total_requests_last_hour": len(recent_requests),
            "successful_requests": len(success_requests),
            "failed_requests": len(error_requests),
            "success_rate": len(success_requests) / len(recent_requests) if recent_requests else 0,
            "average_latency": np.mean([req["latency"] for req in success_requests]) if success_requests else 0,
            "adapter_usage": {}
        }

        # Adapter usage statistics
        for req in success_requests:
            adapter = req.get("adapter", "base_model")
            metrics["adapter_usage"][adapter] = metrics["adapter_usage"].get(adapter, 0) + 1

        return metrics

# API server demonstration
print("\nAPI Server Demo:")
print("=" * 20)

# Initialize API server
api_server = LoRAAPIServer(manager)

# Simulate API requests
print("\nSimulating API requests...")

# 1. Inference request
inference_request = {
    "inputs": {"image": "test.jpg", "text": "Describe this image"},
    "adapter_name": "medical_adapter"
}

response = api_server.inference_endpoint(inference_request)
print(f"Inference response: {response['status']} (took {response.get('inference_time', 0):.3f}s)")

# 2. Load new adapter
load_request = {
    "adapter_name": "custom_adapter",
    "adapter_path": "adapters/custom",
    "config": {"rank": 20, "alpha": 20}
}

response = api_server.load_adapter_endpoint(load_request)
print(f"Load adapter response: {response['status']}")

# 3. Health check
health_response = api_server.health_endpoint()
print(f"Health status: {health_response['status']}")

# 4. List adapters
adapters_response = api_server.list_adapters_endpoint()
print(f"Active adapters: {adapters_response['total_adapters']}")

# 5. Get metrics
metrics_response = api_server.get_metrics_endpoint()
print(f"Success rate: {metrics_response['success_rate']:.1%}")


API Server Demo:
====================
LoRA API Server initialized
Available endpoints:
  POST /inference - Perform inference
  POST /load_adapter - Load new adapter
  DELETE /adapter/{name} - Unload adapter
  GET /health - Health check
  GET /adapters - List adapters

Simulating API requests...

INFO:__main__:Loading adapter 'custom_adapter' from adapters/custom
INFO:__main__:Adapter 'custom_adapter' loaded successfully

Inference response: success (took 0.013s)
Load adapter response: success
Health status: healthy
Active adapters: 4
Success rate: 100.0%

Monitoring and Observability

Performance Monitoring

Code

from collections import defaultdict, deque
import numpy as np
import time

class LoRAMonitor:
    """Comprehensive monitoring for LoRA-adapted VLMs"""

    def __init__(self, model, adapter_name: str = "default", window_size: int = 1000):
        self.model = model
        self.adapter_name = adapter_name
        self.window_size = window_size

        # Metrics storage
        self.metrics = {
            'inference_times': deque(maxlen=window_size),
            'memory_usage': deque(maxlen=window_size),
            'accuracy_scores': deque(maxlen=window_size),
            'request_counts': defaultdict(int),
            'error_counts': defaultdict(int),
            'timestamps': deque(maxlen=window_size)
        }

        # LoRA-specific metrics
        self.lora_metrics = {
            'weight_norms': {},
            'rank_utilization': {},
            'adaptation_strength': {}
        }

        # Performance thresholds
        self.thresholds = {
            'max_inference_time': 2.0,  # seconds
            'max_memory_usage': 4.0,    # GB
            'min_accuracy': 0.8,        # minimum acceptable accuracy
            'max_error_rate': 0.02      # maximum error rate
        }

        print(f"LoRA Monitor initialized for adapter: {adapter_name}")

    def log_inference(self, inference_time: float, memory_usage: float,
                     accuracy: Optional[float] = None):
        """Log inference metrics"""
        current_time = time.time()

        self.metrics['inference_times'].append(inference_time)
        self.metrics['memory_usage'].append(memory_usage)
        self.metrics['timestamps'].append(current_time)

        if accuracy is not None:
            self.metrics['accuracy_scores'].append(accuracy)

        # Check thresholds and alert if necessary
        self.check_thresholds(inference_time, memory_usage, accuracy)

    def check_thresholds(self, inference_time: float, memory_usage: float,
                        accuracy: Optional[float] = None):
        """Check if metrics exceed defined thresholds"""
        alerts = []

        if inference_time > self.thresholds['max_inference_time']:
            alerts.append(f"HIGH_LATENCY: {inference_time:.3f}s > {self.thresholds['max_inference_time']}s")

        if memory_usage > self.thresholds['max_memory_usage']:
            alerts.append(f"HIGH_MEMORY: {memory_usage:.2f}GB > {self.thresholds['max_memory_usage']}GB")

        if accuracy is not None and accuracy < self.thresholds['min_accuracy']:
            alerts.append(f"LOW_ACCURACY: {accuracy:.3f} < {self.thresholds['min_accuracy']}")

        for alert in alerts:
            print(f"🚨 ALERT [{self.adapter_name}]: {alert}")

    def compute_performance_stats(self) -> Dict[str, Any]:
        """Compute performance statistics from collected metrics"""
        stats = {}

        # Inference time statistics
        if self.metrics['inference_times']:
            times = list(self.metrics['inference_times'])
            stats['inference_time'] = {
                'mean': np.mean(times),
                'std': np.std(times),
                'p50': np.percentile(times, 50),
                'p95': np.percentile(times, 95),
                'p99': np.percentile(times, 99),
                'min': np.min(times),
                'max': np.max(times)
            }

        # Memory usage statistics
        if self.metrics['memory_usage']:
            memory = list(self.metrics['memory_usage'])
            stats['memory_usage'] = {
                'mean': np.mean(memory),
                'max': np.max(memory),
                'min': np.min(memory),
                'current': memory[-1] if memory else 0
            }

        # Accuracy statistics
        if self.metrics['accuracy_scores']:
            accuracy = list(self.metrics['accuracy_scores'])
            stats['accuracy'] = {
                'mean': np.mean(accuracy),
                'std': np.std(accuracy),
                'min': np.min(accuracy),
                'max': np.max(accuracy),
                'recent': np.mean(accuracy[-10:]) if len(accuracy) >= 10 else np.mean(accuracy)
            }

        # Throughput calculation
        if len(self.metrics['timestamps']) > 1:
            time_span = self.metrics['timestamps'][-1] - self.metrics['timestamps'][0]
            stats['throughput'] = {
                'requests_per_second': len(self.metrics['timestamps']) / time_span if time_span > 0 else 0,
                'time_span_minutes': time_span / 60
            }

        return stats

    def analyze_trends(self, window_minutes: int = 30) -> Dict[str, Any]:
        """Analyze performance trends over time"""
        current_time = time.time()
        cutoff_time = current_time - (window_minutes * 60)

        # Filter recent metrics
        recent_indices = [i for i, t in enumerate(self.metrics['timestamps'])
                         if t >= cutoff_time]

        if len(recent_indices) < 2:
            return {"error": "Insufficient data for trend analysis"}

        # Extract recent data
        recent_times = [self.metrics['inference_times'][i] for i in recent_indices]
        recent_memory = [self.metrics['memory_usage'][i] for i in recent_indices]

        # Calculate trends (simple linear regression slope)
        x = np.arange(len(recent_times))

        # Inference time trend
        time_slope = np.polyfit(x, recent_times, 1)[0] if len(recent_times) > 1 else 0

        # Memory usage trend
        memory_slope = np.polyfit(x, recent_memory, 1)[0] if len(recent_memory) > 1 else 0

        trends = {
            'window_minutes': window_minutes,
            'data_points': len(recent_indices),
            'inference_time_trend': {
                'slope': time_slope,
                'direction': 'increasing' if time_slope > 0.001 else 'decreasing' if time_slope < -0.001 else 'stable',
                'severity': 'high' if abs(time_slope) > 0.01 else 'medium' if abs(time_slope) > 0.005 else 'low'
            },
            'memory_usage_trend': {
                'slope': memory_slope,
                'direction': 'increasing' if memory_slope > 0.01 else 'decreasing' if memory_slope < -0.01 else 'stable',
                'severity': 'high' if abs(memory_slope) > 0.1 else 'medium' if abs(memory_slope) > 0.05 else 'low'
            }
        }

        return trends

    def generate_monitoring_report(self) -> Dict[str, Any]:
        """Generate comprehensive monitoring report"""
        report = {
            'adapter_name': self.adapter_name,
            'report_timestamp': time.time(),
            'performance_stats': self.compute_performance_stats(),
            'trends': self.analyze_trends(),
            'thresholds': self.thresholds,
            'health_status': self._compute_health_status()
        }

        return report

    def _compute_health_status(self) -> str:
        """Compute overall health status"""
        if not self.metrics['inference_times']:
            return 'unknown'

        recent_times = list(self.metrics['inference_times'])[-10:]
        recent_memory = list(self.metrics['memory_usage'])[-10:]

        # Check for threshold violations
        high_latency = any(t > self.thresholds['max_inference_time'] for t in recent_times)
        high_memory = any(m > self.thresholds['max_memory_usage'] for m in recent_memory)

        if high_latency or high_memory:
            return 'degraded'

        # Check for accuracy issues
        if self.metrics['accuracy_scores']:
            recent_accuracy = list(self.metrics['accuracy_scores'])[-10:]
            low_accuracy = any(a < self.thresholds['min_accuracy'] for a in recent_accuracy)
            if low_accuracy:
                return 'degraded'

        return 'healthy'

# Monitoring demonstration
print("LoRA Monitoring System Demo:")
print("=" * 30)

# Initialize monitor
monitor = LoRAMonitor(None, "production_adapter")

# Simulate monitoring data
print("\nSimulating monitoring data...")
np.random.seed(42)  # For reproducible results

for i in range(50):
    # Simulate varying performance
    base_latency = 0.1
    latency_noise = np.random.normal(0, 0.02)
    memory_base = 2.0
    memory_noise = np.random.normal(0, 0.1)

    # Add some performance degradation over time
    degradation_factor = 1 + (i / 1000)

    inference_time = base_latency * degradation_factor + latency_noise
    memory_usage = memory_base + memory_noise
    accuracy = 0.92 + np.random.normal(0, 0.03)

    monitor.log_inference(inference_time, memory_usage, accuracy)

# Generate performance report
print("\nGenerating performance report...")
report = monitor.generate_monitoring_report()

print(f"Health Status: {report['health_status'].upper()}")

if 'performance_stats' in report:
    perf = report['performance_stats']

    if 'inference_time' in perf:
        print(f"Inference Time - Mean: {perf['inference_time']['mean']:.3f}s, P95: {perf['inference_time']['p95']:.3f}s")

    if 'memory_usage' in perf:
        print(f"Memory Usage - Mean: {perf['memory_usage']['mean']:.2f}GB, Max: {perf['memory_usage']['max']:.2f}GB")

    if 'accuracy' in perf:
        print(f"Accuracy - Mean: {perf['accuracy']['mean']:.3f}, Recent: {perf['accuracy']['recent']:.3f}")

    if 'throughput' in perf:
        print(f"Throughput: {perf['throughput']['requests_per_second']:.1f} req/s")

if 'trends' in report and 'error' not in report['trends']:
    trends = report['trends']
    print(f"\nTrend Analysis ({trends['window_minutes']} min window):")
    print(f"Latency trend: {trends['inference_time_trend']['direction']} ({trends['inference_time_trend']['severity']} severity)")
    print(f"Memory trend: {trends['memory_usage_trend']['direction']} ({trends['memory_usage_trend']['severity']} severity)")

LoRA Monitoring System Demo:
==============================
LoRA Monitor initialized for adapter: production_adapter

Simulating monitoring data...

Generating performance report...
Health Status: HEALTHY
Inference Time - Mean: 0.102s, P95: 0.131s
Memory Usage - Mean: 1.99GB, Max: 2.19GB
Accuracy - Mean: 0.917, Recent: 0.926
Throughput: 562239.1 req/s

Trend Analysis (30 min window):
Latency trend: stable (low severity)
Memory trend: stable (low severity)

Visualization and Dashboards

Dynamic LoRA

Description: Adaptive rank and module selection during training
Potential Impact: 30-50% efficiency improvement
Maturity: Research phase
Status: 🔬 Active Research

Hierarchical LoRA

Description: Multi-level adaptation for different abstraction levels
Potential Impact: Better transfer learning
Maturity: Early development
Status: 🌱 Early Development

Conditional LoRA

Description: Task-conditional parameter generation
Potential Impact: Unlimited task adaptation
Maturity: Conceptual
Status: 💡 Conceptual

Federated LoRA

Description: Distributed learning with privacy preservation
Potential Impact: Privacy-safe collaboration
Maturity: Active research
Status: 🔬 Active Research

Neural Architecture LoRA

Description: Architecture search for optimal LoRA configurations
Potential Impact: Optimal configurations automatically
Maturity: Research phase
Status: 🔬 Research Phase

Short Term (6-12 months)

Focus Areas

Improved rank selection algorithms
Better initialization strategies
Enhanced debugging tools
Standardized evaluation protocols

Expected Outcomes:

More stable training
Better out-of-box performance
Easier troubleshooting

Medium Term (1-2 years)

Focus Areas

Dynamic and adaptive LoRA
Multi-modal LoRA extensions
Automated hyperparameter optimization
Large-scale deployment frameworks

Expected Outcomes:

Self-optimizing systems
Audio-visual-text models
Production-ready pipelines

Long Term (2-5 years)

Focus Areas

Theoretical understanding of adaptation
Novel mathematical frameworks
Integration with emerging architectures
Quantum-inspired adaptations

Expected Outcomes:

Principled design guidelines
Next-generation efficiency
Revolutionary capabilities

Impact Analysis

Dynamic LoRA Case Study

Predicted Impact Analysis

Technique: Dynamic LoRA
Description: Adaptive rank and module selection during training

Metric	Value
Efficiency Gain	1.8x
Performance Improvement	+3.0%
Adoption Timeline	6 months
Implementation Complexity	Medium
Research Interest Score	0.94/1.00

gantt
    title LoRA Research Timeline
    dateFormat  YYYY-MM
    section Short Term
    Rank Selection     :active, st1, 2024-08, 6M
    Initialization     :active, st2, 2024-08, 6M
    Debugging Tools    :st3, after st1, 4M
    section Medium Term
    Dynamic LoRA       :mt1, 2025-02, 12M
    Multi-modal        :mt2, 2025-06, 18M
    Auto-optimization  :mt3, after mt1, 12M
    section Long Term
    Theory Framework   :lt1, 2026-01, 24M
    Next-gen Arch      :lt2, 2026-06, 30M
    Quantum Inspired   :lt3, 2027-01, 36M

Summary

Key Takeaways

Dynamic LoRA shows the most immediate promise with 1.8x efficiency gains
Short-term focus should be on stability and usability improvements
Long-term vision includes theoretical breakthroughs and quantum adaptations
Timeline spans from 6 months to 5 years for full roadmap completion

Research Opportunities

Key Research Domains

Three primary areas have been identified for immediate investigation:

Theoretical Analysis

Better understanding of LoRA’s approximation capabilities
4 key research questions identified
Focus on mathematical foundations

Architecture Specific

Optimized LoRA for different VLM architectures
4 key research questions identified
Vision-language model specialization

Efficiency Optimization

Hardware-aware LoRA optimization
4 key research questions identified
Performance and resource utilization

Detailed Proposals

Research Proposal Details

Area: Theoretical Analysis
Priority: HIGH
Description: Better understanding of LoRA’s approximation capabilities

Proposal 1: Theoretical Limits Investigation

Objective: What is the theoretical limit of low-rank approximation?
Methodology: Matrix perturbation theory
Timeline: 12-18 months
Expected Outcomes:
- Mathematical bounds on approximation quality
- Guidelines for rank selection
- Theoretical framework for optimization

Research Questions Framework

What are the fundamental limits of low-rank approximation in neural networks?
How does rank selection impact convergence and generalization?
Can we establish theoretical guarantees for LoRA performance?
What is the relationship between rank and model capacity?

How can LoRA be optimized for transformer architectures?
What are the best practices for multi-modal model adaptation?
How does LoRA performance vary across different layer types?
Can we develop architecture-specific rank selection strategies?

What are the optimal hardware configurations for LoRA training?
How can we minimize memory overhead during adaptation?
What parallelization strategies work best for LoRA?
Can we develop real-time adaptation capabilities?

Impact Assessment

Impact Scores Summary

Research Area	Overall Impact	Scientific Impact	Practical Impact	Recommendation
Multimodal Extensions	0.75	0.79	0.79	MEDIUM PRIORITY
Continual Learning	0.72	0.86	0.72	MEDIUM PRIORITY
Architecture Specific	0.65	0.84	0.66	MEDIUM PRIORITY
Theoretical Analysis	0.64	0.75	0.53	MEDIUM PRIORITY
Efficiency Optimization	0.63	0.72	0.80	MEDIUM PRIORITY

Summary of Key Points

Conservative Hyperparameter Initialization

Start with conservative hyperparameters (rank=16, alpha=16)
Gradually increase complexity based on validation performance
Avoid overfitting with aggressive initial configurations

Strategic Module Selection

Focus on high-impact modules (attention layers, cross-modal fusion)
Prioritize modules that maximize efficiency gains
Consider computational cost vs. performance trade-offs

Comprehensive Monitoring

Monitor both performance and efficiency metrics throughout development
Track convergence patterns and training stability
Implement early stopping based on validation metrics

Debugging and Analysis Tools

Use appropriate debugging tools to understand adapter behavior
Analyze attention patterns and feature representations
Implement gradient flow monitoring for training diagnostics

Progressive Training Strategies

Implement progressive training strategies for stable convergence
Use curriculum learning approaches when appropriate
Consider staged training with increasing complexity

Memory Optimization

Apply memory optimization techniques for large-scale deployment
Implement gradient checkpointing and mixed precision training
Optimize batch sizes and sequence lengths

Production Monitoring

Establish comprehensive monitoring for production systems
Track model performance drift and adaptation effectiveness
Implement automated alerts for performance degradation

Continuous Learning

Stay updated with emerging techniques and research developments
Regularly evaluate new LoRA variants and improvements
Participate in community discussions and knowledge sharing

Task-Specific Optimization

Consider task-specific configurations for optimal performance
Adapt hyperparameters based on domain requirements
Fine-tune approaches for different VLM applications

Robust Troubleshooting

Implement robust troubleshooting procedures for common issues
Maintain comprehensive error handling and recovery mechanisms
Document solutions for recurring problems

Future Outlook

As the field continues to evolve, LoRA and its variants will likely become even more sophisticated, enabling more efficient and capable multimodal AI systems. The techniques and principles outlined in this guide provide a solid foundation for leveraging these advances in your own Vision-Language Model applications.

Resources for Further Learning

Hugging Face PEFT: Parameter-Efficient Fine-Tuning library
LoRA Paper: “LoRA: Low-Rank Adaptation of Large Language Models” (Hu et al., 2021)
CLIP Paper: “Learning Transferable Visual Representations from Natural Language Supervision” (Radford et al., 2021)
LLaVA Paper: “Visual Instruction Tuning” (Liu et al., 2023)
AdaLoRA Paper: “Adaptive Budget Allocation for Parameter-Efficient Fine-Tuning” (Zhang et al., 2023)

References

Hu, E. J., Shen, Y., Wallis, P., Allen-Zhu, Z., Li, Y., Wang, S., … & Chen, W. (2021). LoRA: Low-Rank Adaptation of Large Language Models. arXiv preprint arXiv:2106.09685.
Radford, A., Kim, J. W., Hallacy, C., Ramesh, A., Goh, G., Agarwal, S., … & Sutskever, I. (2021). Learning Transferable Visual Representations from Natural Language Supervision. International Conference on Machine Learning.
Li, J., Li, D., Xiong, C., & Hoi, S. (2022). BLIP: Bootstrapping Language-Image Pre-training for Unified Vision-Language Understanding and Generation. International Conference on Machine Learning.
Liu, H., Li, C., Wu, Q., & Lee, Y. J. (2023). Visual Instruction Tuning. arXiv preprint arXiv:2304.08485.
Zhang, Q., Chen, M., Bukharin, A., He, P., Cheng, Y., Chen, W., & Zhao, T. (2023). AdaLoRA: Adaptive Budget Allocation for Parameter-Efficient Fine-Tuning. International Conference on Learning Representations.

LoRA for Vision-Language Models: A Comprehensive Guide

Abstract

Introduction

Why LoRA for VLMs?

Understanding LoRA

Core Principles

Mathematical Foundation

Key Advantages

Vision-Language Models Overview

Architecture Components

Popular VLM Architectures

CLIP (Contrastive Language-Image Pre-training)

BLIP (Bootstrapping Language-Image Pre-training)

LLaVA (Large Language and Vision Assistant)

LoRA Architecture for VLMs

Component-wise Application

Layer Selection Strategy

Rank Selection Guidelines

Configuration Management

Training Strategies

1. Progressive Training

2. Multi-Stage Training

Advanced Techniques

1. AdaLoRA (Adaptive LoRA)

2. DoRA (Weight-Decomposed LoRA)

3. Mixture of LoRAs (MoLoRA)

Performance Optimization

Memory Optimization

Training Optimizations

Use Cases and Applications

1. Domain Adaptation

Higher Rank

Attention Focus

Enhanced Extraction

Balanced Efficiency

Vision-Focused

Spatial Modeling

Real-Time Performance

Multi-Object Detection

Safety-Critical

Summary Comparison

2. Multi-lingual Vision-Language

3. Few-Shot Learning

Best Practices

1. Hyperparameter Selection

Summary Table

2. Module Selection Strategy

3. Training Best Practices

Configuration Validation

Troubleshooting

Common Issues and Solutions

LoRA Debugging Analysis

Additional Resources

Debugging Tools

Production Deployment

Model Management System

API Server Implementation

Monitoring and Observability

Performance Monitoring

Visualization and Dashboards

Future Directions

Dynamic LoRA

Hierarchical LoRA

Conditional LoRA

Federated LoRA

Neural Architecture LoRA

Short Term (6-12 months)

Medium Term (1-2 years)

Long Term (2-5 years)

Impact Analysis

Dynamic LoRA Case Study

Summary

Research Opportunities

Detailed Proposals

Proposal 1: Theoretical Limits Investigation

Research Questions Framework

Impact Assessment

Impact Scores Summary

Summary of Key Points

Implementation Checklist
